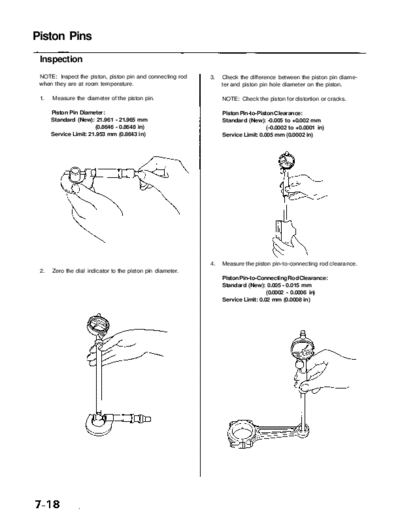

Image preview - the first page of the document
>> Download RL9604S07018A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Piston Pins
Inspection
NOTE: Inspect the piston, piston pin and connecting rod 3. Check the difference between the piston pin diame-
when they are at room temperature. ter and piston pin hole diameter on the piston.
1. Measure the diameter of the piston pin. NOTE: Check the piston for distortion or cracks.
Piston Pin Diameter: Piston Pin-to-Piston Clearance:
Standard (New): 21.961 - 21.965 mm Standard (New): -0.005 to +0.002 mm
(0.8646 - 0.8648 in) (-0.0002 to +0.0001 in)
Service Limit: 21.953 mm (0.8643 in) Service Limit: 0.005 mm (0.0002 in)
4. Measure the piston pin-to-connecting rod clearance.
2. Zero the dial indicator to the piston pin diameter.
Piston Pin-to-Connecting Rod Clearance:
Standard (New): 0.005 - 0.015 mm
(0.0002 - 0.0006 in)
Service Limit: 0.02 mm (0.0008 in)
