Installation

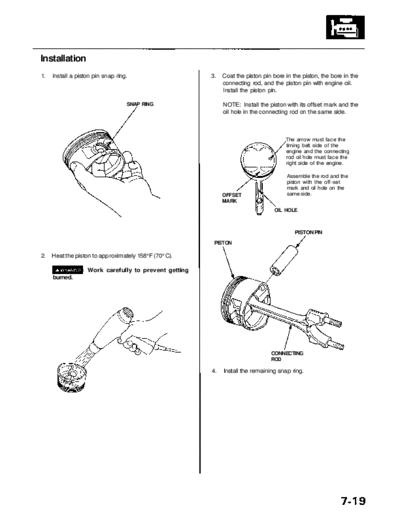

1. Install a piston pin snap ring. 3. Coat the piston pin bore in the piston, the bore in the
connecting rod, and the piston pin with engine oil.
Install the piston pin.
SNAP RING NOTE: Install the piston with its offset mark and the
oil hole in the connecting rod on the same side.
The arrow must face the
timing belt side of the
engine and the connecting
rod oil hole must face the
right side of the engine.
Assemble the rod and the
piston with the off-set
mark and oil hole on the
OFFSET same side.
MARK
OIL HOLE
PISTON PIN
PISTON
2. Heat the piston to approximately 158
