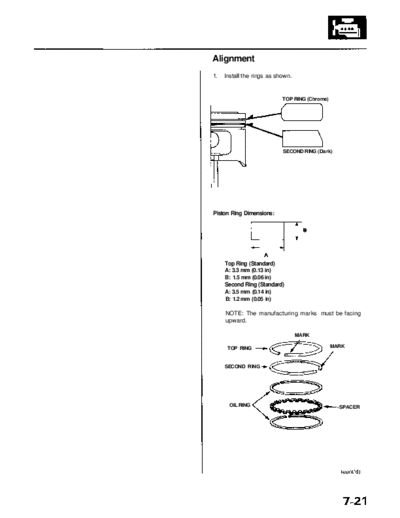

Image preview - the first page of the document



>> Download RL9604S07021B documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents




                                Alignment
                                1.   Install the rings as shown.


                                                            TOP RING (Chrome)




                                                            SECOND RING (Dark)




                                Piston Ring Dimensions:




                                     Top Ring (Standard)
                                     A: 3.3 mm (0.13 in)
                                     B: 1.5 mm (0.06 in)
                                     Second Ring (Standard)
                                     A: 3.5 mm (0.14 in)
                                     B: 1.2 mm (0.05 in)

                                     NOTE: The manufacturing marks must be facing
                                     upward.

                                                                   MARK

                                      TOP RING                                  MARK


                                     SECOND RING




                                       OIL RING                                  - SPACER
                     Main Menu                Table of Contents



Piston Rings
 Alignment (cont'd)
 2.     Rotate the rings in their grooves to make sure they
        do not bind.

 3.     Position the ring end gaps as shown:




                                  DO NOT position any ring gap
      SECOND RING GAP             at piston thrust surfaces.




       Approx. 90
