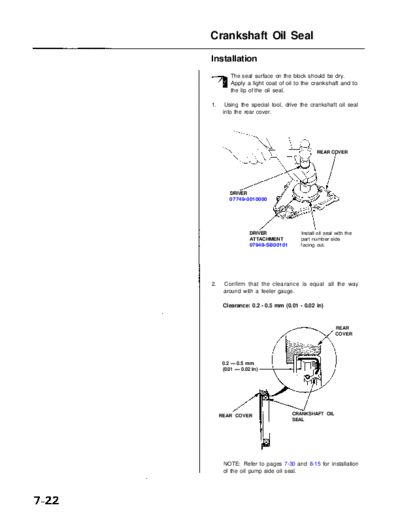

Image preview - the first page of the document
>> Download RL9604S07022A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Crankshaft Oil Seal
Installation
The seal surface on the block should be dry.
Apply a light coat of oil to the crankshaft and to
the lip of the oil seal.
1. Using the special tool, drive the crankshaft oil seal
into the rear cover.
REAR COVER
DRIVER
07749-0010000
DRIVER Install oil seal with the
ATTACHMENT part number side
07948-SB00101 facing out.
2. Confirm that the clearance is equal all the way
around with a feeler gauge.
Clearance: 0.2 - 0.5 mm (0.01 - 0.02 in)
REAR
COVER
0.2 -- 0.5 mm
(0.01 -- 0.02 in)
REAR COVER CRANKSHAFT OIL
SEAL
NOTE: Refer to pages 7-30 and 8-15 for installation
of the oil pump side oil seal.
