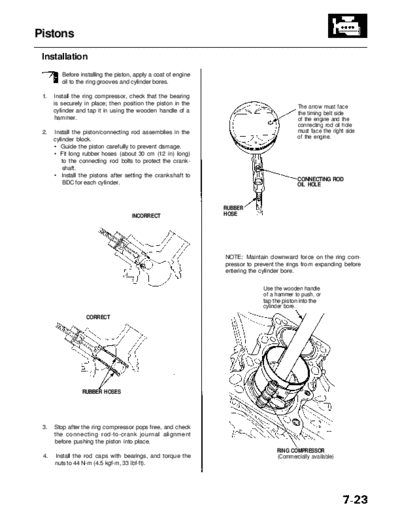

Image preview - the first page of the document



>> Download RL9604S07023A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents


Pistons
 Installation
         Before installing the piston, apply a coat of engine
         oil to the ring grooves and cylinder bores.

 1.   Install the ring compressor, check that the bearing
      is securely in place; then position the piston in the
                                                                                           The arrow must face
      cylinder and tap it in using the wooden handle of a                                  the timing belt side
      hammer.                                                                              of the engine and the
                                                                                           connecting rod oil hole
 2.   Install the piston/connecting rod assemblies in the                                  must face the right side
      cylinder block.                                                                      of the engine.
