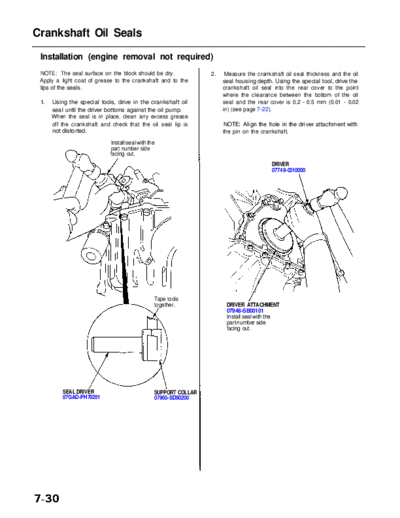

Image preview - the first page of the document
>> Download RL9604S07030A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Crankshaft Oil Seals
Installation (engine removal not required)
NOTE: The seal surface on the block should be dry. 2. Measure the crankshaft oil seal thickness and the oil
Apply a light coat of grease to the crankshaft and to the seal housing depth. Using the special tool, drive the
lips of the seals. crankshaft oil seal into the rear cover to the point
where the clearance between the bottom of the oil
1. Using the special tools, drive in the crankshaft oil seal and the rear cover is 0.2 - 0.5 mm (0.01 - 0.02
seal until the driver bottoms against the oil pump. in) (see page 7-22).
When the seal is in place, clean any excess grease
off the crankshaft and check that the oil seal lip is NOTE: Align the hole in the driver attachment with
not distorted. the pin on the crankshaft.
Install seal with the
part number side
facing out.
DRIVER
07749-0010000
Tape tools
together. DRIVER ATTACHMENT
07948-SB00101
Install seal with the
part number side
facing out.
SEAL DRIVER SUPPORT COLLAR
07GAD-PH70201 07965-SD90200
