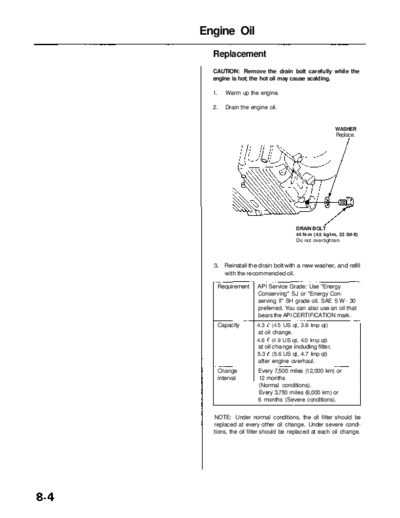

Image preview - the first page of the document
>> Download RL9604S08004B documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Engine Oil
Replacement
CAUTION: Remove the drain bolt carefully while the
engine is hot; the hot oil may cause scalding.
1. Warm up the engine.
2. Drain the engine oil.
WASHER
Replace.
DRAIN BOLT
44 N-m (4.5 kgf-m, 33 Ibf-ft)
Do not overtighten.
3. Reinstall the drain bolt with a new washer, and refill
with the recommended oil.
Requirement API Service Grade: Use "Energy
Conserving" SJ or "Energy Con-
serving II" SH grade oil. SAE 5 W - 30
preferred. You can also use an oil that
bears the API CERTIFICATION mark.
Capacity 4.3 (4.5 US qt, 3.8 Imp qt)
at oil change.
4.6 (4.9 US qt, 4.0 Imp qt)
at oil change including filter.
5.3 (5.6 US qt, 4.7 Imp qt)
after engine overhaul.
Change Every 7,500 miles (12,000 km) or
interval 12 months
(Normal conditions).
Every 3,750 miles (6,000 km) or
6 months (Severe conditions).
NOTE: Under normal conditions, the oil filter should be
replaced at every other oil change. Under severe condi-
tions, the oil filter should be replaced at each oil change.
Main Menu Table of Contents
The numbers in the middle of the API Service label tell
you the oil's SAE viscosity or weight. Select the oil for
your vehicle according to this chart:
Ambient Temperature
An oil with a viscosity of 5W - 30 is preferred for
improved fuel economy and year-round protection in
the vehicle. You may use a 10W - 30 oil if the climate in
your area is limited to the temperature range shown on
the chart.
API SERVICE LABEL
4. Run the engine for more than 3 minutes, then check
for oil leakage.
