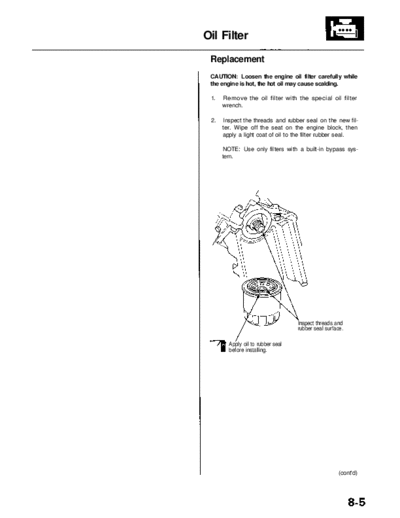

Image preview - the first page of the document
>> Download RL9604S08005A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Oil Filter
Replacement
CAUTION: Loosen the engine oil filter carefully while
the engine is hot, the hot oil may cause scalding.
1. Remove the oil filter with the special oil filter
wrench.
2. Inspect the threads and rubber seal on the new fil-
ter. Wipe off the seat on the engine block, then
apply a light coat of oil to the filter rubber seal.
NOTE: Use only filters with a built-in bypass sys-
tem.
Inspect threads and
rubber seal surface.
Apply oil to rubber seal
before installing.
(cont'd)
Main Menu Table of Contents
Oil Filter
Replacement (cont'd)
3. Install the oil filter by hand. Use this procedure to tighten the filter if eight numbers
(1 to 8) are printed on the surface of the filter.
4. After the rubber seal seats, tighten the oil filter
clockwise with the tool. 1) Make a mark on the oil pan under the number that
shows at the bottom of the filter when the rubber
Tighten: 7/8 turn clockwise. seal is seated.
Tightening torque: 22 N-m (2.2 kgf-m, 16 Ibf-ft)
2) Tighten the filter by turning it clockwise seven num-
bers from the marked point. For example, if a mark
is made under the number 2 when the rubber seal
is seated, the filter should be tightened until the
number 1 comes up to the marked point.
Number when rubber Number after tightening,
seal is seated.
OIL FILTER WRENCH
07912-6110001
CAUTION: Using any procedure other than those
shown could result in serious engine damage due
to oil leakage.
5. After installation, fill the engine with oil up to the
specified level, run the engine for more than three
minutes, then check for oil leakage.
