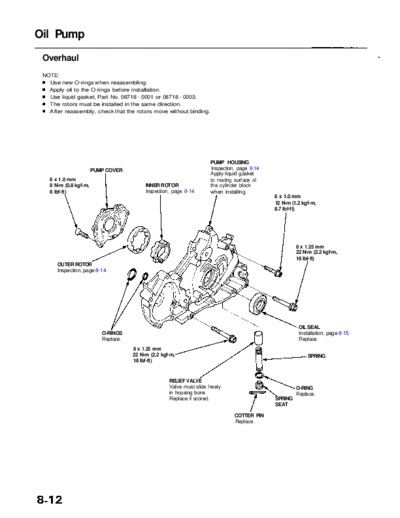

Image preview - the first page of the document
>> Download RL9604S08012A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Oil Pump
Overhaul
NOTE:
Use new O-rings when reassembling.
Apply oil to the O-rings before installation.
Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.
The rotors must be installed in the same direction.
After reassembly, check that the rotors move without binding.
PUMP HOUSING
PUMP COVER Inspection, page 8-14
Apply liquid gasket
6 x 1.0 mm to mating surface of
8 N-m (0.8 kgf-m, INNER ROTOR the cylinder block
6 Ibf-ft) Inspection, page 8-14 when installing.
6 x 1.0 mm
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
8 x 1.25 mm
22 N-m (2.2 kgf-m,
16 Ibf-ft)
OUTER ROTOR
Inspection, page 8-14
OIL SEAL
O-RINGS Installation, page 8-15
Replace. Replace.
8 x 1.25 mm
22 N-m (2.2 kgf-m, SPRING
16 Ibf-ft)
RELIEF VALVE
Valve must slide freely O-RING
in housing bore. Replace.
Replace if scored. SPRING
SEAT
COTTER PIN
Replace.
