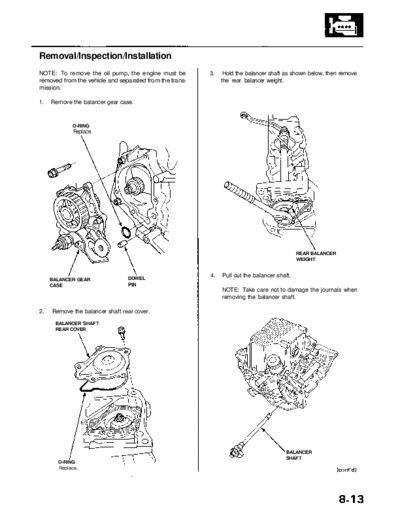

Image preview - the first page of the document
>> Download RL9604S08013A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Removal/lnspection/lnstallation
NOTE: To remove the oil pump, the engine must be 3. Hold the balancer shaft as shown below, then remove
removed from the vehicle and separated from the trans- the rear balancer weight.
mission.
1. Remove the balancer gear case.
O-RING
Replace.
REAR BALANCER
WEIGHT
4. Pull out the balancer shaft.
BALANCER GEAR DOWEL
CASE PIN
NOTE: Take care not to damage the journals when
removing the balancer shaft.
2. Remove the balancer shaft rear cover.
BALANCER SHAFT
REAR COVER
BALANCER
SHAFT
O-RING
Replace.
Main Menu Table of Contents
Oil Pump
Removal/lnspection/lnstallation (cont'd)
5. Remove the balancer shaft holder (see page 7-3). 8. Remove the screws from the pump housing, then
separate the housing and cover.
6. Remove the oil pan assembly.
9. Check the inner-to-outer rotor radial clearance on
7. Remove the oil pump. the pump rotor. If the inner-to-outer rotor clearance
exceeds the service limit, replace the inner and outer
rotors.
O-RINGS Inner Rotor-to-Outer Rotor Radial Clearance
Replace. Standard (New): 0.02 - 0.16 mm
(0.001 - 0.006 in)
Service Limit: 0.20 mm (0.008 in)
DOWEL
OIL PUMP PIN
OUTER ROTOR
INNER ROTOR
10. Check the housing-to-rotor axial clearance on the
pump rotor. If the housing-to-rotor axial clearance
exceeds the service limit, replace the set of inner
and outer rotors and/or the pump housing.
Housing-to-Rotor Axial Clearance
Standard (New): 0.02 - 0.07 mm
(0.001 - 0.003 in)
Service Limit: 0.12 mm (0.005 in)
HOUSING
ROTOR
Main Menu Table of Contents
11. Check the housing-to-outer rotor radial clearance. If 15. Reassemble the oil pump, applying liquid thread
the housing-to-outer rotor radial clearance exceeds lock to the pump housing screws.
the service limit, replace the set of inner and outer
rotors and/or the pump housing. 16. Check that the oil pump turns freely.
Housing-to-Outer Rotor Radial Clearance 17. Apply a light coat of oil to the seal lip.
Standard (New): 0.10-0.18 mm
(0.004-0.007 in) 18. Install the two dowel pins and new O-ring on the
Service Limit: 0.20 mm (0.008 in) cylinder block.
HOUSING 19. Apply liquid gasket to the cylinder block mating sur-
face of the oil pump.
NOTE:
