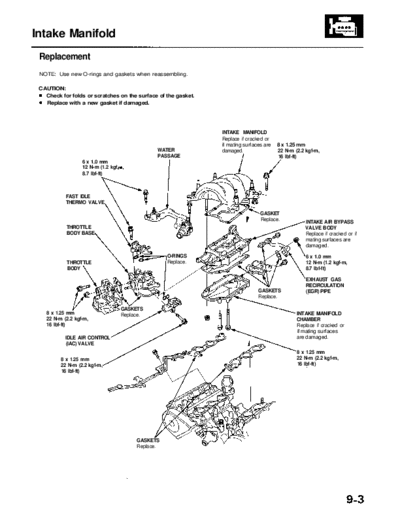

Image preview - the first page of the document
>> Download RL9604S09003A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Intake Manifold
Replacement
NOTE: Use new O-rings and gaskets when reassembling.
CAUTION:
Check for folds or scratches on the surface of the gasket.
Replace with a new gasket if damaged.
INTAKE MANIFOLD
Replace if cracked or
if mating surfaces are 8 x 1.25 mm
WATER damaged. 22 N-m (2.2 kgf-m,
PASSAGE 16 Ibf-ft)
6 x 1.0 mm
12 N-m (1.2 kgf,
8.7 Ibf-ft)
FAST IDLE
THERMO VALVE
GASKET
Replace. INTAKE AIR BYPASS
THROTTLE VALVE BODY
BODY BASE Replace if cracked or if
mating surfaces are
damaged.
O-RINGS 6 x 1.0 mm
THROTTLE Replace. 12 N-m (1.2 kgf-m,
BODY 8.7 Ibf-ft)
EXHAUST GAS
RECIRCULATION
GASKETS (EGR) PIPE
Replace.
GASKETS
8 x 1.25 mm Replace. INTAKE MANIFOLD
22 N-m (2.2 kgf-m, CHAMBER
16 Ibf-ft) Replace if cracked or
if mating surfaces
IDLE AIR CONTROL are damaged.
(IAC) VALVE
8 x 1.25 mm
8 x 1.25 mm 22 N-m (2.2 kgf-m,
22 N-m (2.2 kgf-m, 16 Ibf-ft)
16 Ibf-ft)
GASKETS
Replace.
