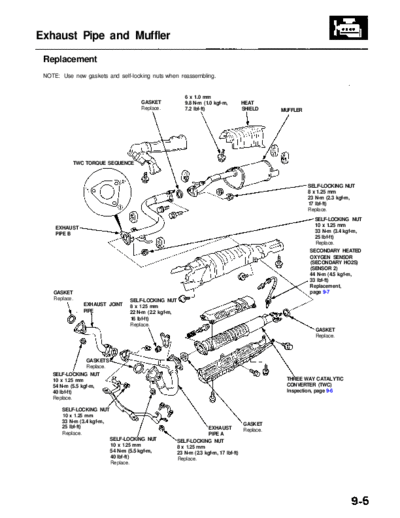

Main Menu Table of Contents
Exhaust Pipe and Muffler
Replacement
NOTE: Use new gaskets and self-locking nuts when reassembling.
6 x 1.0 mm
GASKET 9.8 N-m (1.0 kgf-m, HEAT
Replace. 7.2 Ibf-ft) SHIELD MUFFLER
TWC TORQUE SEQUENCE
SELF-LOCKING NUT
8 x 1.25 mm
23 N-m (2.3 kgf-m,
17 Ibf-ft)
Replace.
SELF-LOCKING NUT
EXHAUST 10 x 1.25 mm
PIPE B 33 N-m (3.4 kgf-m,
25 Ibf-ft)
Replace.
SECONDARY HEATED
OXYGEN SENSOR
(SECONDARY HO2S)
(SENSOR 2)
44 N-m (4.5 kgf-m,
33 Ibf-ft)
Replacement,
GASKET page 9-7
Replace. SELF-LOCKING NUT
EXHAUST JOINT 8 x 1.25 mm
PIPE 22 N-m (2.2 kgf-m,
16 Ibf-ft)
Replace.
GASKET
Replace.
GASKETS
Replace.
SELF-LOCKING NUT
10 x 1.25 mm THREE WAY CATALYTIC
54 N-m (5.5 kgf-m, CONVERTER (TWC)
40 Ibf-ft) Inspection, page 9-6
Replace.
SELF-LOCKING NUT
10 x 1.25 mm
33 N-m (3.4 kgf-m,
GASKET
25 Ibf-ft) EXHAUST Replace.
Replace. PIPE A
SELF-LOCKING NUT SELF-LOCKING NUT
10 x 1.25 mm 8 x 1.25 mm
54 N-m (5.5 kgf-m, 23 N-m (2.3 kgf-m, 17 Ibf-ft)
40 Ibf-ft) Replace.
Replace.
