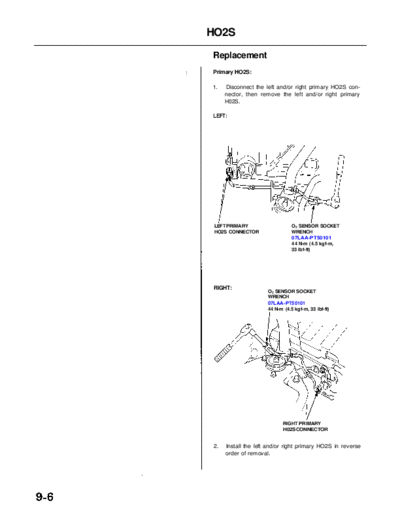

Image preview - the first page of the document



>> Download RL9604S09006B documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents

                                HO2S

                                Replacement

                         T      Primary HO2S:

                                1.    Disconnect the left and/or right primary HO2S con-
                                      nector, then remove the left and/or right primary
                                      H02S.

                                LEFT:




                                 LEFT PRIMARY                    O2 SENSOR SOCKET
                                 HO2S CONNECTOR                  WRENCH
                                                                 07LAA-PT50101
                                                                 44 N-m (4.5 kgf-m,
                                                                 33 Ibf-ft)




                                RIGHT:
                                                      O2 SENSOR SOCKET
                                                      WRENCH
                                                      07LAA-PT50101
                                                      44 N-m (4.5 kgf-m, 33 Ibf-ft)




                                                             RIGHT PRIMARY
                                                             H02S CONNECTOR


                                 2.   Install the left and/or right primary HO2S in reverse
                                      order of removal.
            Main Menu                     Table of Contents




Secondary HO2S:                                               5.   Remove the secondary HO2S.

1.   Move the front passenger's seat forward.
     Pull the carpet back to expose the secondary HO2S
     connector.
                                                                                   SECONDARY HO2S
                                                                                   44 N-m (4.5 kgf-m, 33 Ibf-ft)
2.   Disconnect the secondary HO2S connector.




                  SECONDARY
                  HO2S CONNECTOR




                                                                                      O2 SENSOR WRENCH
                                                                                      (Commercially available)




3.   Remove the wire harness cover, then remove the           6.   Install the secondary HO2S in reverse order of
     grommet.                                                      removal.

 WIRE HARNESS      GROMMET
 COVER




                                                  HEAT
                                                  SHIELD
                6 x 1.0 mm
                9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)



4.   Remove the heat shields.
