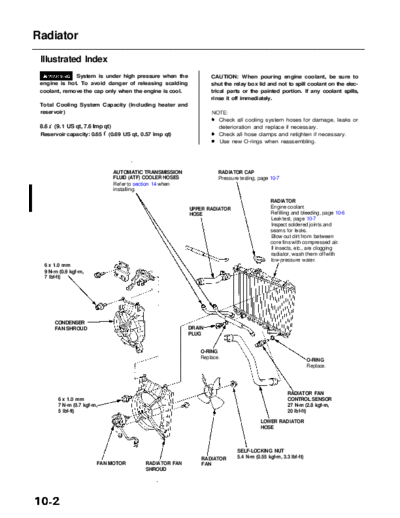

Image preview - the first page of the document
>> Download RL9604S10002A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Radiator
Illustrated Index
System is under high pressure when the CAUTION: When pouring engine coolant, be sure to
engine is hot. To avoid danger of releasing scalding shut the relay box lid and not to spill coolant on the elec-
coolant, remove the cap only when the engine is cool. trical parts or the painted portion. If any coolant spills,
rinse it off immediately.
Total Cooling System Capacity (Including heater and
reservoir) NOTE:
Check all cooling system hoses for damage, leaks or
8.6 (9.1 US qt, 7.6 Imp qt) deterioration and replace if necessary.
Reservoir capacity: 0.65 (0.69 US qt, 0.57 Imp qt) Check all hose clamps and retighten if necessary.
Use new O-rings when reassembling.
AUTOMATIC TRANSMISSION RADIATOR CAP
FLUID (ATF) COOLER HOSES Pressure testing, page 10-7
Refer to section 14 when
installing.
RADIATOR
UPPER RADIATOR Engine coolant
HOSE Refilling and bleeding, page 10-6
Leak test, page 10-7
Inspect soldered joints and
seams for leaks.
Blow out dirt from between
core fins with compressed air.
If insects, etc., are clogging
radiator, wash them off with
low-pressure water.
6 x 1.0 mm
9 N-m (0.9 kgf-m,
7 Ibf-ft)
CONDENSER
FAN SHROUD DRAIN
PLUG
O-RING
Replace.
O-RING
Replace.
RADIATOR FAN
6 x 1.0 mm CONTROL SENSOR
7 N-m (0.7 kgf-m, 27 N-m (2.8 kgf-m,
5 Ibf-ft) 20 Ibf-ft)
LOWER RADIATOR
HOSE
SELF-LOCKING NUT
RADIATOR 5.4 N-m (0.55 kgf-m, 3.3 Ibf-ft)
FAN MOTOR RADIATOR FAN FAN
SHROUD
Main Menu Table of Contents
Engine Hose Connections:
HEATER
HOSES
FAST IDLE THERMO HEATER
VALVE VALVE
WATER BYPASS
HOSES
IDLE AIR
CONTROL
VALVE
REAR WATER
OUTLET
THERMOSTAT
HOUSING
ATF COOLER
HOSES
Refer to section 14
when installing.
ATF COOLER
LINES
COOLANT
RESERVOIR
