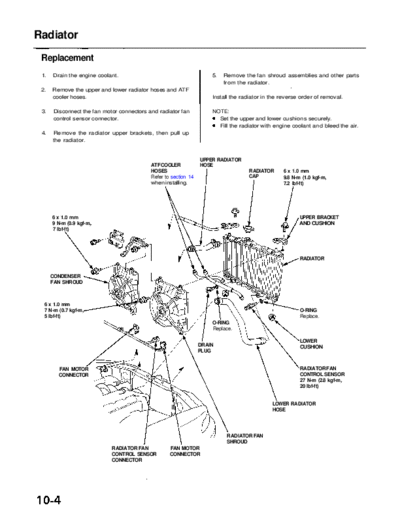

Image preview - the first page of the document
>> Download RL9604S10004A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Radiator
Replacement
1. Drain the engine coolant. 5. Remove the fan shroud assemblies and other parts
from the radiator.
2. Remove the upper and lower radiator hoses and ATF
cooler hoses. Install the radiator in the reverse order of removal.
3. Disconnect the fan motor connectors and radiator fan NOTE:
control sensor connector. Set the upper and lower cushions securely.
Fill the radiator with engine coolant and bleed the air.
4. Remove the radiator upper brackets, then pull up
the radiator.
UPPER RADIATOR
ATF COOLER HOSE
HOSES RADIATOR 6 x 1.0 mm
Refer to section 14 CAP 9.8 N-m (1.0 kgf-m,
when installing. 7.2 Ibf-ft)
6 x 1.0 mm UPPER BRACKET
9 N-m (0.9 kgf-m, AND CUSHION
7 Ibf-ft)
RADIATOR
CONDENSER
FAN SHROUD
6 x 1.0 mm
7 N-m (0.7 kgf-m, O-RING
5 Ibf-ft) Replace.
O-RING
Replace.
LOWER
DRAIN CUSHION
PLUG
FAN MOTOR RADIATOR FAN
CONNECTOR CONTROL SENSOR
27 N-m (2.8 kgf-m,
20 Ibf-ft)
LOWER RADIATOR
HOSE
RADIATOR FAN
SHROUD
RADIATOR FAN FAN MOTOR
CONTROL SENSOR CONNECTOR
CONNECTOR
