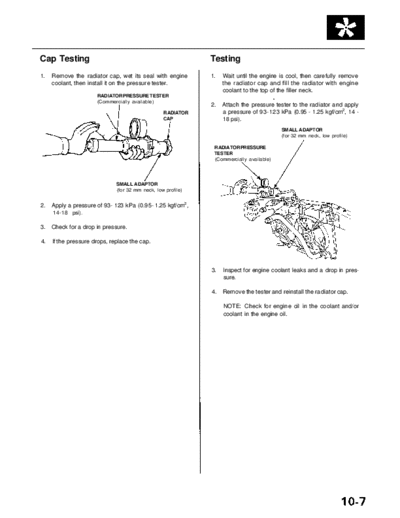

Image preview - the first page of the document



>> Download RL9604S10007A documenatation <<

Text preview - extract from the document

              Main Menu                  Table of Contents




Cap Testing                                                   Testing
1.   Remove the radiator cap, wet its seal with engine        1.   Wait until the engine is cool, then carefully remove
     coolant, then install it on the pressure tester.              the radiator cap and fill the radiator with engine
                                                                   coolant to the top of the filler neck.
                      RADIATOR PRESSURE TESTER
                      (Commercially available)
                                                              2.   Attach the pressure tester to the radiator and apply
                                                  RADIATOR         a pressure of 93-123 kPa (0.95 - 1.25 kgf/cm2, 14 -
                                                  CAP              18 psi).
                                                                                          SMALL ADAPTOR
                                                                                          (for 32 mm neck, low profile)

                                                               RADIATOR PRESSURE
                                                               TESTER
                                                               (Commercially available)




                              SMALL ADAPTOR
                              (for 32 mm neck, low profile)


2.   Apply a pressure of 93- 123 kPa (0.95- 1.25 kgf/cm2,
     14-18 psi).

3.   Check for a drop in pressure.

4.   If the pressure drops, replace the cap.




                                                              3.   Inspect for engine coolant leaks and a drop in pres-
                                                                   sure.

                                                              4.   Remove the tester and reinstall the radiator cap.

                                                                   NOTE: Check for engine oil in the coolant and/or
                                                                   coolant in the engine oil.
