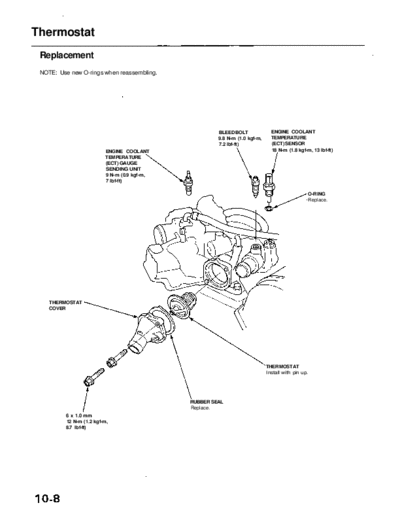

             Main Menu                  Table of Contents


Thermostat
 Replacement
 NOTE: Use new O-rings when reassembling.




                                                                     BLEED BOLT              ENGINE COOLANT
                                                                     9.8 N-m (1.0 kgf-m,     TEMPERATURE
                                                                     7.2 Ibf-ft)             (ECT) SENSOR
                          ENGINE COOLANT                                                     18 N-m (1.8 kgf-m, 13 Ibf-ft)
                          TEMPERATURE
                          (ECT) GAUGE
                          SENDING UNIT
                          9 N-m (0.9 kgf-m,
                          7 Ibf-ft)

                                                                                                              O-RING
                                                                                                              Replace.




    THERMOSTAT
    COVER




                                                                                           THERMOSTAT
                                                                                           Install with pin up.




                                                            RUBBER SEAL
                                                            Replace.
         6 x 1.0 mm
         12 N-m (1.2 kgf-m,
         8.7 Ibf-ft)
