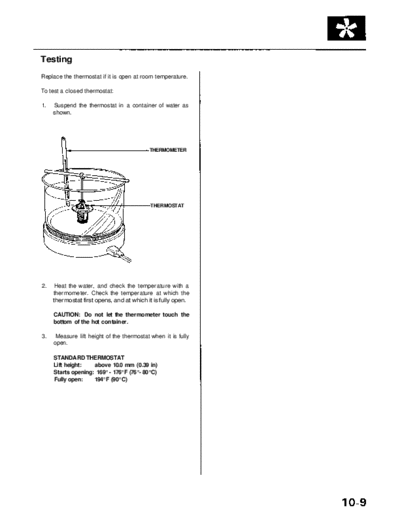

Image preview - the first page of the document



>> Download RL9604S10009A documenatation <<

Text preview - extract from the document

             Main Menu                  Table of Contents




Testing
Replace the thermostat if it is open at room temperature.

To test a closed thermostat:

1.   Suspend the thermostat in a container of water as
     shown.




                                           THERMOMETER




                                            THERMOSTAT




2.    Heat the water, and check the temperature with a
     thermometer. Check the temperature at which the
     thermostat first opens, and at which it is fully open.

     CAUTION: Do not let the thermometer touch the
     bottom of the hot container.

3.    Measure lift height of the thermostat when it is fully
     open.

     STANDARD THERMOSTAT
     Lift height:   above 10.0 mm (0.39 in)
     Starts opening: 169
