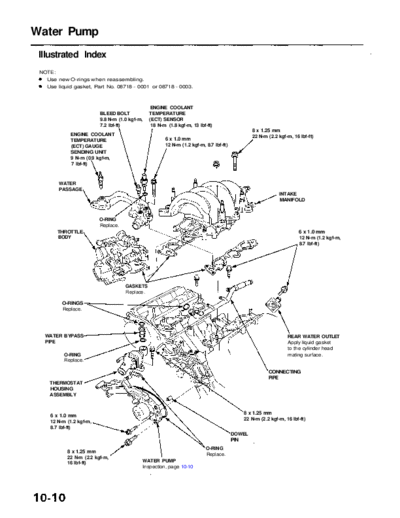

Image preview - the first page of the document
>> Download RL9604S10010A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Water Pump
Illustrated Index
NOTE:
Use new O-rings when reassembling.
Use liquid gasket, Part No. 08718 - 0001 or 08718 - 0003.
ENGINE COOLANT
BLEED BOLT TEMPERATURE
9.8 N-m (1.0 kgf-m, (ECT) SENSOR
7.2 Ibf-ft) 18 N-m (1.8 kgf-m, 13 Ibf-ft)
8 x 1.25 mm
ENGINE COOLANT 22 N-m (2.2 kgf-m, 16 Ibf-ft)
TEMPERATURE 6 x 1.0 mm
(ECT) GAUGE 12 N-m (1.2 kgf-m, 8.7 Ibf-ft)
SENDING UNIT
9 N-m (0.9 kgf-m,
7 Ibf-ft)
WATER
PASSAGE
INTAKE
MANIFOLD
O-RING
Replace.
THROTTLE 6 x 1.0 mm
BODY 12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
GASKETS
Replace.
O-RINGS
Replace.
WATER BYPASS REAR WATER OUTLET
PIPE Apply liquid gasket
to the cylinder head
O-RING mating surface.
Replace.
CONNECTING
PIPE
THERMOSTAT
HOUSING
ASSEMBLY
6 x 1.0 mm 8 x 1.25 mm
22 N-m (2.2 kgf-m, 16 Ibf-ft)
12 N-m (1.2 kgf-m,
8.7 Ibf-ft)
DOWEL
PIN
O-RING
8 x 1.25 mm
Replace.
22 N-m (2.2 kgf-m,
16 Ibf-ft) WATER PUMP
Inspection, page 10-10
