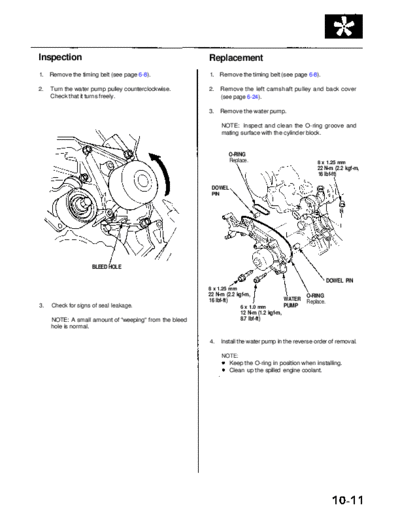

Image preview - the first page of the document



>> Download RL9604S10011A documenatation <<

Text preview - extract from the document

               Main Menu                Table of Contents




Inspection                                                  Replacement
1.   Remove the timing belt (see page 6-8).                 1. Remove the timing belt (see page 6-8).

2.   Turn the water pump pulley counterclockwise.           2.     Remove the left camshaft pulley and back cover
     Check that it turns freely.                                   (see page 6-24).

                                                            3.     Remove the water pump.

                                                                   NOTE: Inspect and clean the O-ring groove and
                                                                   mating surface with the cylinder block.


                                                                      O-RING
                                                                      Replace.                             8 x 1.25 mm
                                                                                                           22 N-m (2.2 kgf-m,
                                                                                                           16 Ibf-ft)

                                                             DOWEL
                                                             PIN




                    BLEED HOLE

                                                                                                                  DOWEL PIN
                                                            8 x 1.25 mm
                                                            22 N-m (2.2 kgf-m,                         O-RING
                                                            16 Ibf-ft)                         WATER   Replace.
3.   Check for signs of seal leakage.                                     6 x 1.0 mm           PUMP
                                                                          12 N-m (1.2 kgf-m,
     NOTE: A small amount of "weeping" from the bleed                     8.7 Ibf-ft)
     hole is normal.

                                                            4.     Install the water pump in the reverse order of removal.

                                                                   NOTE:
                                                                     Keep the O-ring in position when installing.
                                                                     Clean up the spilled engine coolant.
