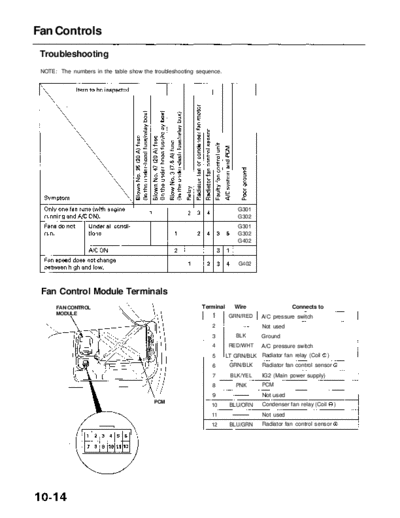

Image preview - the first page of the document
RL9604S10014A


>> Download RL9604S10014A documenatation <<

Text preview - extract from the document
              Main Menu              Table of Contents


Fan Controls
 Troubleshooting
 NOTE: The numbers in the table show the troubleshooting sequence.




                                                                          G301
                                                                          G302
                                                                          G301
                                                                          G302
                                                                          G402



                                                                          G402




 Fan Control Module Terminals
      FAN CONTROL                                          Terminal      Wire                 Connects to
      MODULE
                                                              1        GRN/RED     A/C pressure switch
                                                              2                    Not used
                                                              3          BLK       Ground
                                                              4        RED/WHT     A/C pressure switch
                                                              5       LT GRN/BLK Radiator fan relay (Coil      )
                                                              6        GRN/BLK     Radiator fan control sensor
                                                              7        BLK/YEL     IG2 (Main power supply)
                                                              8          PNK       PCM
                                                              9                    Not used
                                         PCM
                                                              10       BLU/ORN     Condenser fan relay (Coil       )
                                                              11                   Not used
                                                              12       BLU/GRN     Radiator fan control sensor
