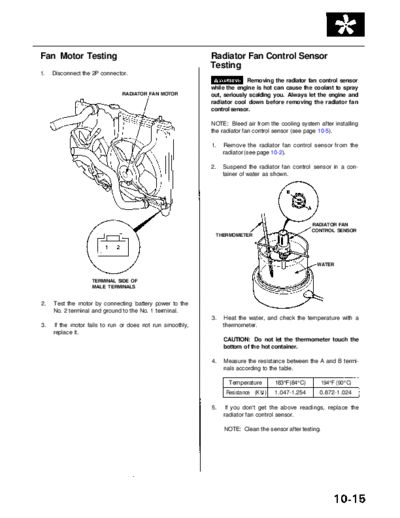

Image preview - the first page of the document
>> Download RL9604S10015A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Fan Motor Testing Radiator Fan Control Sensor
Testing
1. Disconnect the 2P connector.
Removing the radiator fan control sensor
while the engine is hot can cause the coolant to spray
RADIATOR FAN MOTOR out, seriously scalding you. Always let the engine and
radiator cool down before removing the radiator fan
control sensor.
NOTE: Bleed air from the cooling system after installing
the radiator fan control sensor (see page 10-5).
1. Remove the radiator fan control sensor from the
radiator (see page 10-2).
2. Suspend the radiator fan control sensor in a con-
tainer of water as shown.
RADIATOR FAN
CONTROL SENSOR
THERMOMETER
WATER
TERMINAL SIDE OF
MALE TERMINALS
2. Test the motor by connecting battery power to the
No. 2 terminal and ground to the No. 1 terminal.
3. Heat the water, and check the temperature with a
3. If the motor fails to run or does not run smoothly, thermometer.
replace it.
CAUTION: Do not let the thermometer touch the
bottom of the hot container.
4. Measure the resistance between the A and B termi-
nals according to the table.
Temperature 183◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
