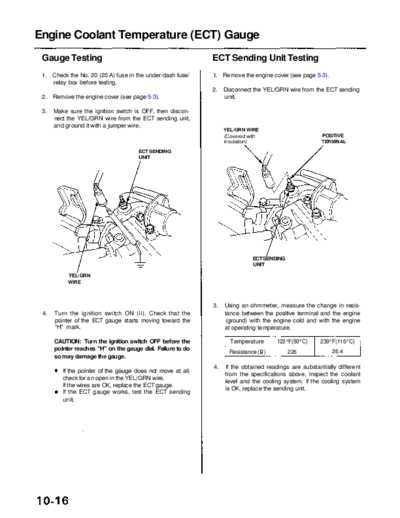

                Main Menu                Table of Contents


Engine Coolant Temperature (ECT) Gauge
 Gauge Testing                                               ECT Sending Unit Testing
 1.   Check the No. 20 (20 A) fuse in the under-dash fuse/   1. Remove the engine cover (see page 5-3).
      relay box before testing.
                                                             2.   Disconnect the YEL/GRN wire from the ECT sending
 2.   Remove the engine cover (see page 5-3).                     unit.

 3.   Make sure the ignition switch is OFF, then discon-
      nect the YEL/GRN wire from the ECT sending unit,
      and ground it with a jumper wire.
                                                                  YEL/GRN WIRE
                                                                  (Covered with                        POSITIVE
                                                                  insulation)                          TERMINAL

                                      ECT SENDING
                                      UNIT




                                                                             ECT SENDING
                                                                             UNIT

            YEL/GRN
            WIRE



                                                             3.   Using an ohmmeter, measure the change in resis-
 4.   Turn the ignition switch ON (II). Check that the            tance between the positive terminal and the engine
      pointer of the ECT gauge starts moving toward the           (ground) with the engine cold and with the engine
      "H" mark.                                                   at operating temperature.

      CAUTION: Turn the ignition switch OFF before the              Temperature      122
