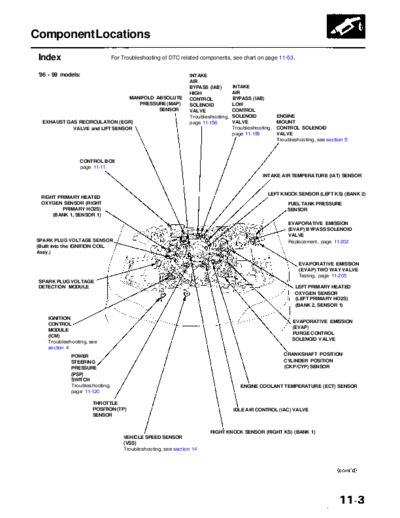

Text preview - extract from the document
Main Menu Table of Contents
Component Locations
Index For Troubleshooting of DTC related components, see chart on page 11-53.
'96 - 99 models: INTAKE
AIR
BYPASS (IAB) INTAKE
HIGH AIR
MANIFOLD ABSOLUTE CONTROL BYPASS (IAB)
PRESSURE (MAP) SOLENOID LOW
SENSOR VALVE CONTROL
Troubleshooting, SOLENOID ENGINE
EXHAUST GAS RECIRCULATION (EGR) page 11-156 VALVE MOUNT
VALVE and LIFT SENSOR Troubleshooting, CONTROL SOLENOID
page 11-158 VALVE
Troubleshooting, see section 5
CONTROL BOX
page 11-11
INTAKE AIR TEMPERATURE (IAT) SENSOR
LEFT KNOCK SENSOR (LEFT KS) (BANK 2)
RIGHT PRIMARY HEATED
OXYGEN SENSOR (RIGHT FUEL TANK PRESSURE
PRIMARY HO2S) SENSOR
(BANK 1, SENSOR 1)
EVAPORATIVE EMISSION
(EVAP) BYPASS SOLENOID
VALVE
SPARK PLUG VOLTAGE SENSOR Replacement, page 11-202
(Built into the IGNITION COIL
Assy.)
EVAPORATIVE EMISSION
(EVAP) TWO WAY VALVE
Testing, page 11-205
SPARK PLUG VOLTAGE
DETECTION MODULE LEFT PRIMARY HEATED
OXYGEN SENSOR
(LEFT PRIMARY HO2S)
(BANK 2, SENSOR 1)
IGNITION
EVAPORATIVE EMISSION
CONTROL
(EVAP)
MODULE
PURGE CONTROL
(ICM)
SOLENOID VALVE
Troubleshooting, see
section 4
POWER CRANKSHAFT POSITION/
STEERING CYLINDER POSITION
PRESSURE (CKP/CYP) SENSOR
(PSP)
SWITCH
Troubleshooting, ENGINE COOLANT TEMPERATURE (ECT) SENSOR
page 11-120
THROTTLE
POSITION (TP) IDLE AIR CONTROL (IAC) VALVE
SENSOR
RIGHT KNOCK SENSOR (RIGHT KS) (BANK 1)
VEHICLE SPEED SENSOR
(VSS)
Troubleshooting, see section 14
Main Menu Table of Contents
Component Locations
Index (cont'd)
For Troubleshooting of DTC related components, see chart on page 11-53 ('00-'03 models) 11-41 ('04 model).
'00 - 04 models:
INTAKE MANIFOLD INTAKE MANIFOLD
MANIFOLD ABSOLUTE RUNNER CONTROL RUNNER CONTROL
PRESSURE (MAP) (IMRC) (IMRC)
SENSOR SOLENOID SOLENOID
VALVE 2 VALVE 1
EXHAUST GAS RECIRCULATION (EGR) Troubleshooting, Troubleshooting,
VALVE and POSITION SENSOR page 11-158 page 11-158 ENGINE
MOUNT
CONTROL SOLENOID
VALVE
CONTROL BOX Troubleshooting, see section 5
page 11-11
INTAKE AIR TEMPERATURE (IAT) SENSOR
RIGHT PRIMARY HEATED
OXYGEN SENSOR (RIGHT
PRIMARY HO2S) LEFT KNOCK SENSOR (BANK 2)
(BANK 1, SENSOR 1)
SPARK PLUG VOLTAGE SPARK PLUG VOLTAGE SENSOR
DETECTION MODULE (Built into the IGNITION COIL
Assy.)
LEFT PRIMARY HEATED
OXYGEN SENSOR
(LEFT PRIMARY HO2S)
(BANK 2, SENSOR 1)
IGNITION
CONTROL
MODULE EVAPORATIVE EMISSION
(ICM) (EVAP)
Troubleshooting, see CANISTER PURGE
section 4 VALVE
POWER
STEERING CRANKSHAFT POSITION/
PRESSURE CYLINDER POSITION
(PSP) (CKP/CYP) SENSOR
SWITCH
Troubleshooting,
page 11-120 ENGINE COOLANT TEMPERATURE (ECT) SENSOR
THROTTLE
POSITION (TP) IDLE AIR CONTROL (IAC) VALVE
SENSOR
RIGHT KNOCK SENSOR (BANK 1)
VEHICLE SPEED SENSOR
(VSS)
Troubleshooting, see section 14
Main Menu Table of Contents
For Troubleshooting of DTC related components, see chart on page 11-53 ('00-'03 models) 11-41 ('04 model).
SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S) (SENSOR 2)
THREE WAY CATALYTIC CONVERTER (TWO
PGM-FI
MAIN RELAY
Relay Testing, page 11-146
Troubleshooting, page 11-147
SERVICE CHECK CONNECTOR
Troubleshooting procedures, page 11-40
DATA LINK CONNECTOR (DLC) POWERTRAIN CONTROL MODULE
Troubleshooting (PCM)
procedures, page 11-40 Troubleshooting, page 11-63
Main Menu Table of Contents
Component Locations
Index (cont'd)
For Troubleshooting of DTC related components, see chart on page 11-53 ('00-'03 models) 11-41 ('04 model).
INTAKE MANIFOLD
INTAKE MANIFOLD RUNNDER CONTROL (IMRC)
RUNNER CONTROL (IMRC) DIAPHRAGM 2 POSITIVE CRANKCASE VENTILATION (PCV) VALVE
DIAPHRAGM 1 Testing, page 11-162 Inspection, page 11-174
Testing, page 11-161
THROTTLE BODY
Inspection, page 11-155
Disassembly, page 11-156
AIR CLEANER
Replacement,
page 11-153
RESONATOR THROTTLE CABLE
Inspection/Adjustment, page 11-154
IDLE AIR CONTROL (IAC) THERMAL VALVE
Installation, page 11-154
Inspection, page 11-123
FUEL PUMP RESISTOR
Troubleshooting, page 11-141
FUEL PUMP RELAY
Troubleshooting, page 11-139
Main Menu Table of Contents
For Troubleshooting of DTC related components, see chart on page 11-53.
'96-99 models:
FUEL TANK
Replacement, page 11-150
FUEL TANK EVAPORATIVE
EMISSION (EVAP) VALVE
FUEL FILTER
Replacement, page 11-142 FUEL GAUGE SENDING UNIT
Testing, page 11-144
FUEL PRESSURE
REGULATOR FUEL PUMP
Testing, page 11-135 Testing, page 11-142
Removal, page 11-136 Replacement, page 11-143
Reassembly, page 11-136
FUEL PULSATION
DAMPER
FUEL FILL
FUEL RAIL CAP
FUEL TUBE/QUICK-CONNECT
FITTINGS
Precautions, page 11-129
Disconnection, page 11-129
Connection, page 11-130
FUEL VAPOR PIPE
INJECTORS
Replacement, page 11-133 FUEL RETURN PIPE
FUEL FEED PIPE
EVAPORATIVE EMISSION
(EVAP) CONTROL CANISTER
V E N T SHUT VALVE
Replacement, page 11-201 EVAPORATIVE EMISSION
(EVAP) CONTROL CANISTER
Main Menu Table of Contents
Component Locations
Index (cont'd)
For Troubleshooting of DTC related components, see chart on page 11-53 ('00-'03 models) 11-41 ('04 model).
'00 - 04 models:
FUEL TANK VAPOR
FUEL TANK CONTROL VALVE
Replacement, page 11-151 Testing, page 11-201
FUEL FILTER FUEL GAUGE SENDING UNIT
Replacement, page 11-142 Testing, page 11-144
FUEL PRESSURE FUEL PUMP
REGULATOR Testing, page 11-142
Testing, page 11-135 Replacement, page 11-143
Removal, page 11-136
Reassembly, page 11-136
FUEL FILL
CAP
FUEL PULSATION
DAMPER
FUEL RAIL
EVAPORATIVE
EMISSION
(EVAP)
CANISTER
FILTER
FUEL TUBE/QUICK-CONNECT
FITTINGS
Precautions, page 11-129
Disconnection, page 11-129
Connection, page 11-130
EVAPORATIVE EMISSION
(EVAP) CANISTER
VENT SHUT VALVE
Replacement, page 11-201
INJECTORS FUEL VAPOR PIPE
Replacement, page 11-133
EVAPORATIVE EMISSION
(EVAP) TWO WAY VALVE
EVAPORATIVE EMISSION Testing, page 11-205
(EVAP)
FUEL TANK PRESSURE (FTP)
CANISTER PURGE
FUEL FEED PIPE SENSOR
VALVE
FUEL RETURN PIPE EVAPORATIVE EMISSION
(EVAP) BYPASS SOLENOID
VALVE
Replacement, page 11-202
EVAPORATIVE EMISSION
(EVAP) CANISTER
Troubleshooting, page 11-196
