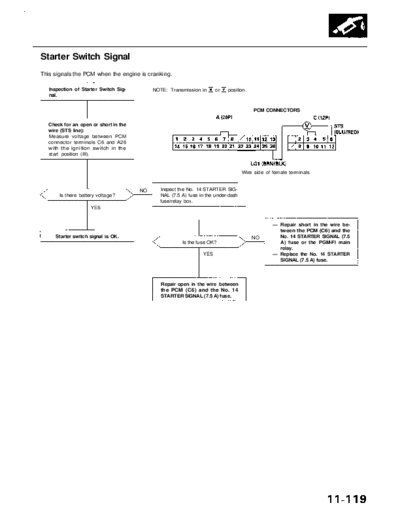

Image preview - the first page of the document
>> Download RL9604S11119A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Starter Switch Signal
This signals the PCM when the engine is cranking.
Inspection of Starter Switch Sig- NOTE: Transmission in or position.
nal.
PCM CONNECTORS
Check for an open or short in the
wire (STS line):
Measure voltage between PCM
connector terminals C6 and A26
with the ignition switch in the
start position (III).
Wire side of female terminals
NO Inspect the No. 14 STARTER SIG-
Is there battery voltage? NAL (7.5 A) fuse in the under-dash
fuse/relay box.
YES
-- Repair short in the wire be-
tween the PCM (C6) and the
Starter switch signal is OK. NO No. 14 STARTER SIGNAL (7.5
Is the fuse OK? A) fuse or the PGM-FI main
relay.
YES -- Replace the No. 14 STARTER
SIGNAL (7.5 A) fuse.
Repair open in the wire between
the PCM (C6) and the No. 14
STARTER SIGNAL (7.5 A) fuse.
