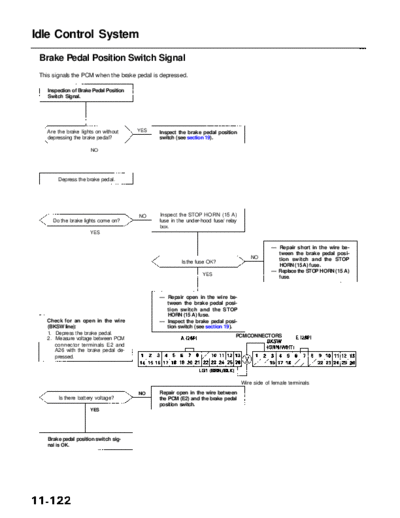

               Main Menu                  Table of Contents


Idle Control System
 Brake Pedal Position Switch Signal
 This signals the PCM when the brake pedal is depressed.

    Inspection of Brake Pedal Position
    Switch Signal.




    Are the brake lights on without      YES     Inspect the brake pedal position
    depressing the brake pedal?                  switch (see section 19).

                       NO




        Depress the brake pedal.




                                         NO      Inspect the STOP HORN (15 A)
      Do the brake lights come on?               fuse in the under-hood fuse/ relay
                                                 box.
                      YES

                                                                                                  -- Repair short in the wire be-
                                                                                                     tween the brake pedal posi-
                                                                                          NO         tion switch and the STOP
                                                          Is the fuse OK?
                                                                                                     HORN (15 A) fuse.
                                                                                                  -- Replace the STOP HORN (15 A)
                                                                   YES
                                                                                                     fuse.


                                                 -- Repair open in the wire be-
                                                    tween the brake pedal posi-
                                                    tion switch and the STOP
                                                    HORN (15 A) fuse.
    Check for an open in the wire                -- Inspect the brake pedal posi-
    (BKSW line):                                    tion switch (see section 19).
    1. Depress the brake pedal.
                                                                                  PCM CONNECTORS
    2. Measure voltage between PCM
       connector terminals E2 and
       A26 with the brake pedal de-
       pressed.




                                                                                      Wire side of female terminals

                                         NO      Repair open in the wire between
        Is there battery voltage?                the PCM (E2) and the brake pedal
                                                 position switch.
                      YES




    Brake pedal position switch sig-
    nal is OK.
