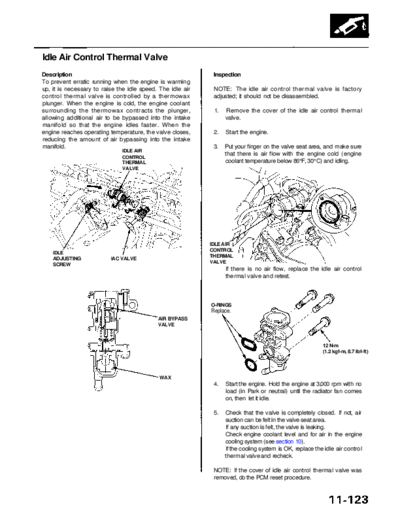

Image preview - the first page of the document
RL9604S11123A


>> Download RL9604S11123A documenatation <<

Text preview - extract from the document
            Main Menu                 Table of Contents




Idle Air Control Thermal Valve
Description                                                  Inspection
To prevent erratic running when the engine is warming
up, it is necessary to raise the idle speed. The idle air    NOTE: The idle air control thermal valve is factory
control thermal valve is controlled by a thermowax           adjusted; it should not be disassembled.
plunger. When the engine is cold, the engine coolant
surrounding the thermowax contracts the plunger,             1.   Remove the cover of the idle air control thermal
allowing additional air to be bypassed into the intake            valve.
manifold so that the engine idles faster. When the
engine reaches operating temperature, the valve closes,      2.   Start the engine.
reducing the amount of air bypassing into the intake
manifold.                                                    3.   Put your finger on the valve seat area, and make sure
                              IDLE AIR
                                                                  that there is air flow with the engine cold (engine
                              CONTROL
                              THERMAL                             coolant temperature below 86
