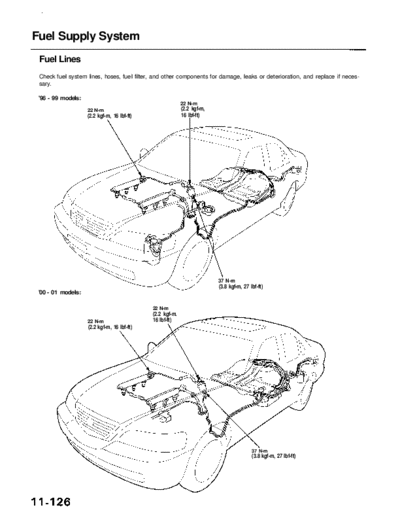

Image preview - the first page of the document



>> Download RL9604S11126A documenatation <<

Text preview - extract from the document

              Main Menu                      Table of Contents


Fuel Supply System
 Fuel Lines
 Check fuel system lines, hoses, fuel filter, and other components for damage, leaks or deterioration, and replace if neces-
 sary.

 '96 - 99 models:
                                                              22 N-m
                    22 N-m                                    (2.2 kgf-m,
                    (2.2 kgf-m, 16 Ibf-ft)                    16 Ibf-ft)




                                                                            37 N-m
                                                                            (3.8 kgf-m, 27 Ibf-ft)
 '00 - 01 models:

                                                 22 N-m
                                                 (2.2 kgf-m
                    22 N-m                       16 Ibf-ft)
                    (2.2 kgf-m, 16 Ibf-ft)




                                                                                            37 N-m
                                                                                            (3.8 kgf-m, 27 Ibf-ft)
            Main Menu                   Table of Contents




'96 - 99 models:
Check all hose clamps and retighten if necessary.


                                                                  FUEL GAUGE SENDING
                                       FUEL TANK EVAPORATIVE      UNIT ASSEMBLY        FUEL PUMP
                                       EMISSION (EVAP)                                 ASSEMBLY
                                       VALVE
                                                                                              BASE GASKET
                                                                                              Replace.




                                To                 BASE
                                FUEL               GASKET
                                PRESSURE           Replace.
                                REGULATOR




                                                              FUEL
                                                              FILTER
                                                                       FUEL
                                                                       TANK



                                EVAPORATIVE EMISSION
                                (EVAP) TWO WAY VALVE




                        EVAPORATIVE EMISSION
                        (EVAP) CONTROL
                        CANISTER




                                      Clamp in the middle.




                                                                                          Clamp in the middle.


             10 - 15 mm
             (0.39 - 0.59 in)
               Main Menu                Table of Contents


Fuel Supply System
 Fuel Lines (cont'd)
 '00 - 01 models:
 Check all hose clamps and retighten if necessary.

 A: Do not disconnect.
                                                              FUEL GAUGE SENDING
                                                              UNIT ASSEMBLY

                                                                               FUEL PUMP
                                                                               ASSEMBLY

                           FUEL TANK
                           VAPOR CONTROL
                           VALVE




          To FUEL
          FILTER


                              FUEL
                              TANK




                                                                                           Clamp in the middle


                                        Clamp in the middle
