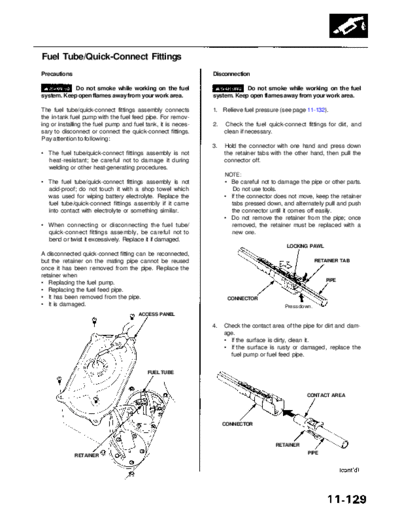

Image preview - the first page of the document
>> Download RL9604S11129A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Fuel Tube/Quick-Connect Fittings
Precautions Disconnection
Do not smoke while working on the fuel Do not smoke while working on the fuel
system. Keep open flames away from your work area. system. Keep open flames away from your work area.
The fuel tube/quick-connect fittings assembly connects 1. Relieve fuel pressure (see page 11-132).
the in-tank fuel pump with the fuel feed pipe. For remov-
ing or installing the fuel pump and fuel tank, it is neces- 2. Check the fuel quick-connect fittings for dirt, and
sary to disconnect or connect the quick-connect fittings. clean if necessary.
Pay attention to following:
3. Hold the connector with one hand and press down
