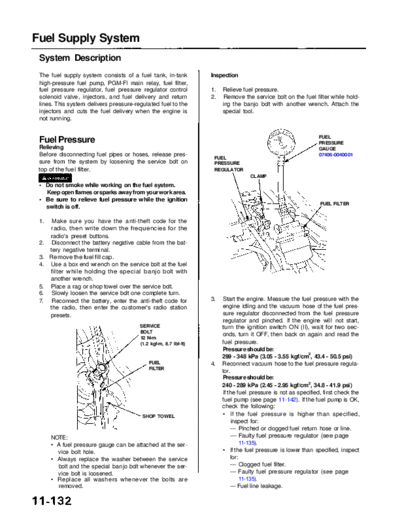

Image preview - the first page of the document
>> Download RL9604S11132A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Fuel Supply System
System Description
The fuel supply system consists of a fuel tank, in-tank Inspection
high-pressure fuel pump, PGM-FI main relay, fuel filter,
fuel pressure regulator, fuel pressure regulator control 1. Relieve fuel pressure.
solenoid valve, injectors, and fuel delivery and return 2. Remove the service bolt on the fuel filter while hold-
lines. This system delivers pressure-regulated fuel to the ing the banjo bolt with another wrench. Attach the
injectors and cuts the fuel delivery when the engine is special tool.
not running.
FUEL
Fuel Pressure PRESSURE
Relieving GAUGE
Before disconnecting fuel pipes or hoses, release pres- FUEL
07406-0040001
sure from the system by loosening the service bolt on PRESSURE
top of the fuel filter. REGULATOR
CLAMP
