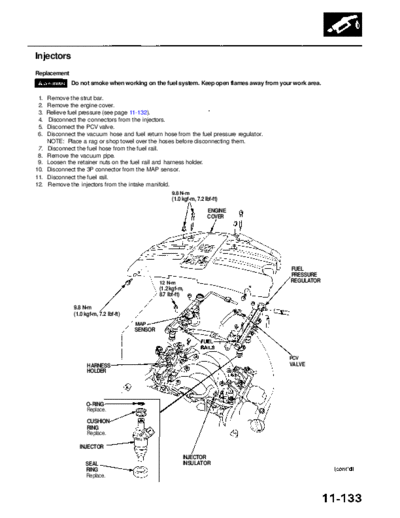

Image preview - the first page of the document



>> Download RL9604S11133A documenatation <<

Text preview - extract from the document

                Main Menu                  Table of Contents




Injectors
Replacement
               Do not smoke when working on the fuel system. Keep open flames away from your work area.

 1.   Remove the strut bar.
 2.   Remove the engine cover.
 3.   Relieve fuel pressure (see page 11-132).
 4.   Disconnect the connectors from the injectors.
 5.   Disconnect the PCV valve.
 6.   Disconnect the vacuum hose and fuel return hose from the fuel pressure regulator.
      NOTE: Place a rag or shop towel over the hoses before disconnecting them.
 7.   Disconnect the fuel hose from the fuel rail.
 8.   Remove the vacuum pipe.
 9.   Loosen the retainer nuts on the fuel rail and harness holder.
10.   Disconnect the 3P connector from the MAP sensor.
11.   Disconnect the fuel rail.
12.   Remove the injectors from the intake manifold.
                                                        9.8 N-m
                                                        (1.0 kgf-m, 7.2 Ibf-ft)

                                                                         ENGINE
                                                                         COVER




                                                                                            FUEL
                                                                                            PRESSURE
                                                   12 N-m                                   REGULATOR
                                                   (1.2 kgf-m,
                                                   8.7 Ibf-ft)

                9.8 N-m
                (1.0 kgf-m, 7.2 Ibf-ft)
                                          MAP
                                          SENSOR



                                                                                           PCV
                      HARNESS                                                              VALVE
                      HOLDER




                      O-RING
                      Replace.

                      CUSHION
                      RING
                      Replace.

                  INJECTOR
                                                               INJECTOR
                     SEAL                                      INSULATOR
                     RING
                     Replace.
                 Main Menu                  Table of Contents


Fuel Supply System
 Injectors (cont'd)
 13.   Slide new cushion rings onto the injectors.
 14.   Coat new O-rings with clean engine oil, and put them on the injectors.
 15.   Insert the injectors into the fuel rail first.
 16.   Coat new seal rings with clean engine oil and press them into the intake manifold.
 17.   To prevent damage to the O-ring, install the injectors in the fuel rail first, then install them in the intake manifold.


                                                                                   FUEL
                                                                                   RAILS




 18.  Install and tighten the retainer nuts.
 19. Connect the 3P connector to the MAP sensor.
 20. Connect the fuel hose to the fuel rail.
 21. Connect the vacuum pipe.
 22. Connect the vacuum hose and fuel return hose to the fuel pressure regulator.
 23. Install the connectors on the injectors.
 24. Connect the PCV valve.
 25. Turn the ignition switch ON (II), but do not operate the starter. After the fuel pump runs for approximately 2 seconds,
     the fuel pressure in the fuel line rises. Repeat this two or three times, then check whether there is any fuel leakage.
 26. Install the engine cover.
 27. Install the strut bar.
