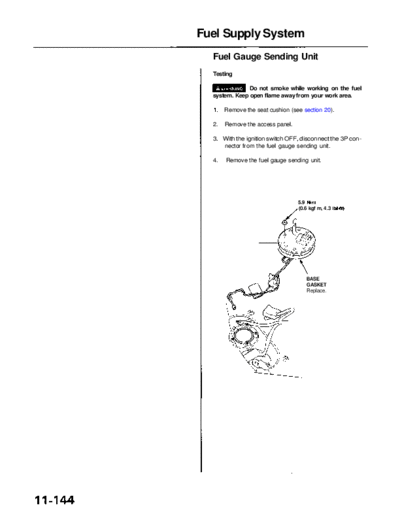

Image preview - the first page of the document
>> Download RL9604S11144A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Fuel Supply System
Fuel Gauge Sending Unit
Testing
Do not smoke while working on the fuel
system. Keep open flame away from your work area.
1. Remove the seat cushion (see section 20).
2. Remove the access panel.
3. With the ignition switch OFF, disconnect the 3P con-
nector from the fuel gauge sending unit.
4. Remove the fuel gauge sending unit.
5.9 N-m
(0.6 kgf m, 4.3 Ibf-ft)
BASE
GASKET
Replace.
Main Menu Table of Contents
5. Measure the resistance between the No. 1 and No. 2
terminals at E (EMPTY), 1/2 (HALF FULL) and F (FULL)
by moving the float.
Terminal side of
male terminals
Top of the workbench (Bottom of the fuel tank)
If you do not get the above readings, replace the fuel
gauge sending unit.
