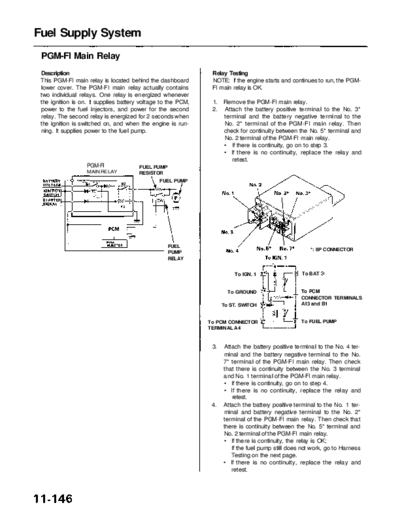

Text preview - extract from the document
Main Menu Table of Contents
Fuel Supply System
PGM-FI Main Relay
Description Relay Testing
This PGM-FI main relay is located behind the dashboard NOTE: If the engine starts and continues to run, the PGM-
lower cover. The PGM-FI main relay actually contains FI main relay is OK.
two individual relays. One relay is energized whenever
the ignition is on. It supplies battery voltage to the PCM, 1. Remove the PGM-FI main relay.
power to the fuel injectors, and power for the second 2. Attach the battery positive terminal to the No. 3*
relay. The second relay is energized for 2 seconds when terminal and the battery negative terminal to the
the ignition is switched on, and when the engine is run- No. 2* terminal of the PGM-FI main relay. Then
ning. It supplies power to the fuel pump. check for continuity between the No. 5* terminal and
No. 2 terminal of the PGM-FI main relay.
