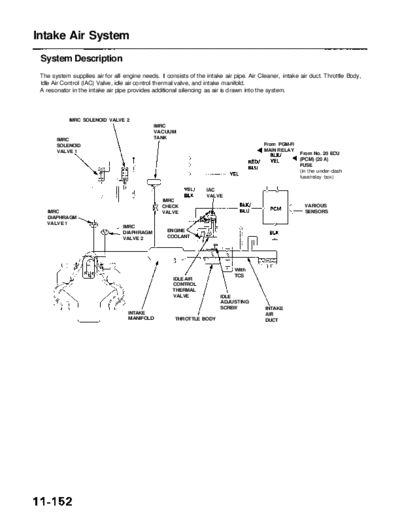

Image preview - the first page of the document
RL9604S11152A


>> Download RL9604S11152A documenatation <<

Text preview - extract from the document
              Main Menu                 Table of Contents


Intake Air System
 System Description
 The system supplies air for all engine needs. It consists of the intake air pipe. Air Cleaner, intake air duct. Throttle Body,
 Idle Air Control (IAC) Valve, idle air control thermal valve, and intake manifold.
 A resonator in the intake air pipe provides additional silencing as air is drawn into the system.



            IMRC SOLENOID VALVE 2
                                             IMRC
                                             VACUUM
       IMRC                                  TANK
       SOLENOID                                                                         From PGM-FI
       VALVE 1                                                                          MAIN RELAY
                                                                                                       From No. 20 ECU
                                                                                                       (PCM) (20 A)
                                                                                                       FUSE
                                                                                                       (in the under-dash
                                                                                                       fuse/relay box)

                                                                  IAC
                                                                  VALVE
                                                IMRC
                                                CHECK                                                    VARIOUS
   IMRC                                         VALVE                                                    SENSORS
   DIAPHRAGM
   VALVE 1
                                 IMRC
                                 DIAPHRAGM        ENGINE
                                 VALVE 2          COOLANT




                                                                             With
                                                                             TCS
                                                     IDLE AIR
                                                     CONTROL
                                                     THERMAL
                                                     VALVE             IDLE
                                                                       ADJUSTING
                                                                       SCREW             INTAKE
                                   INTAKE                                                AIR
                                   MANIFOLD           THROTTLE BODY                      DUCT
