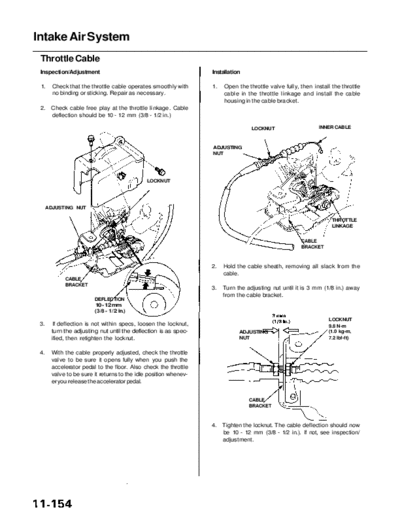

               Main Menu                   Table of Contents


Intake Air System
 Throttle Cable
 Inspection/Adjustment                                            Installation

 1.     Check that the throttle cable operates smoothly with      1.   Open the throttle valve fully, then install the throttle
        no binding or sticking. Repair as necessary.                   cable in the throttle linkage and install the cable
                                                                       housing in the cable bracket.
 2.    Check cable free play at the throttle linkage. Cable
       deflection should be 10 - 12 mm (3/8 - 1/2 in.)

                                                                                  LOCKNUT                     INNER CABLE



                                                                  ADJUSTING
                                                                  NUT




                                              LOCKNUT




      ADJUSTING NUT

                                                                                                                   THROTTLE
                                                                                                                   LINKAGE


                                                                                                      CABLE
                                                                                                      BRACKET



                                                                  2.   Hold the cable sheath, removing all slack from the
                                                                       cable.
             CABLE
             BRACKET
                                                                  3.   Turn the adjusting nut until it is 3 mm (1/8 in.) away
                                                                       from the cable bracket.
                        DEFLECTION
                        10 - 12 mm
                        (3/8 - 1/2 in.)
                                                                                                                  LOCKNUT
 3.    If deflection is not within specs, loosen the locknut,                                                     9.8 N-m
       turn the adjusting nut until the deflection is as spec-               ADJUSTING                            (1.0 kg-m,
       ified, then retighten the locknut.                                    NUT                                  7.2 Ibf-ft)


 4.    With the cable properly adjusted, check the throttle
       valve to be sure it opens fully when you push the
       accelerator pedal to the floor. Also check the throttle
       valve to be sure it returns to the idle position whenev-
       er you release the accelerator pedal.


                                                                                 CABLE
                                                                                 BRACKET



                                                                  4.   Tighten the locknut. The cable deflection should now
                                                                       be 10 - 12 mm (3/8 - 1/2 in.). If not, see inspection/
                                                                       adjustment.
