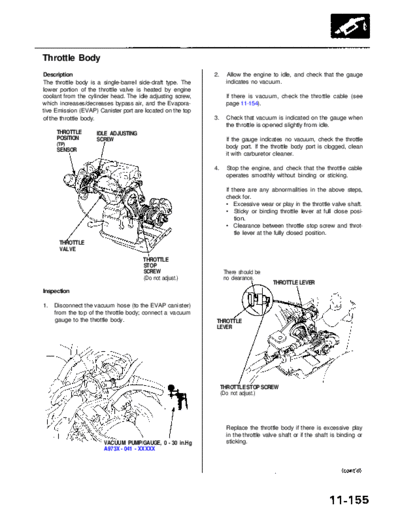

             Main Menu                Table of Contents




Throttle Body
Description                                                 2.     Allow the engine to idle, and check that the gauge
The throttle body is a single-barrel side-draft type. The          indicates no vacuum.
lower portion of the throttle valve is heated by engine
coolant from the cylinder head. The idle adjusting screw,          If there is vacuum, check the throttle cable (see
which increases/decreases bypass air, and the Evapora-             page 11-154).
tive Emission (EVAP) Canister port are located on the top
of the throttle body.                                       3.     Check that vacuum is indicated on the gauge when
                                                                   the throttle is opened slightly from idle.
     THROTTLE       IDLE ADJUSTING
     POSITION       SCREW                                          If the gauge indicates no vacuum, check the throttle
      (TP)                                                         body port. If the throttle body port is clogged, clean
     SENSOR
                                                                   it with carburetor cleaner.

                                                            4.     Stop the engine, and check that the throttle cable
                                                                   operates smoothly without binding or sticking.

                                                                   If there are any abnormalities in the above steps,
                                                                   check for.
