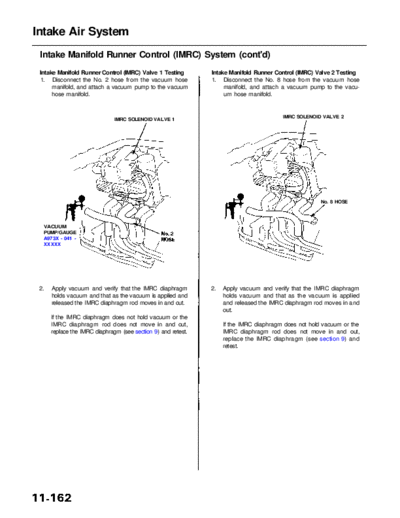

Image preview - the first page of the document



>> Download RL9604S11162A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents

Intake Air System
 Intake Manifold Runner Control (IMRC) System (cont'd)
 Intake Manifold Runner Control (IMRC) Valve 1 Testing         Intake Manifold Runner Control (IMRC) Valve 2 Testing
 1. Disconnect the No. 2 hose from the vacuum hose             1. Disconnect the No. 8 hose from the vacuum hose
      manifold, and attach a vacuum pump to the vacuum              manifold, and attach a vacuum pump to the vacu-
      hose manifold.                                                um hose manifold.


                                                                                         IMRC SOLENOID VALVE 2
                               IMRC SOLENOID VALVE 1




                                                                                                       No. 8 HOSE




  VACUUM
  PUMP/GAUGE
  A973X - 041 -
  XXXXX




 2.   Apply vacuum and verify that the IMRC diaphragm          2.   Apply vacuum and verify that the IMRC diaphragm
      holds vacuum and that as the vacuum is applied and            holds vacuum and that as the vacuum is applied
      released the IMRC diaphragm rod moves in and out.             and released the IMRC diaphragm rod moves in and
                                                                    out.
      If the IMRC diaphragm does not hold vacuum or the
      IMRC diaphragm rod does not move in and out,                  If the IMRC diaphragm does not hold vacuum or the
      replace the IMRC diaphragm (see section 9) and retest.        IMRC diaphragm rod does not move in and out,
                                                                    replace the IMRC diaphragm (see section 9) and
                                                                    retest.
