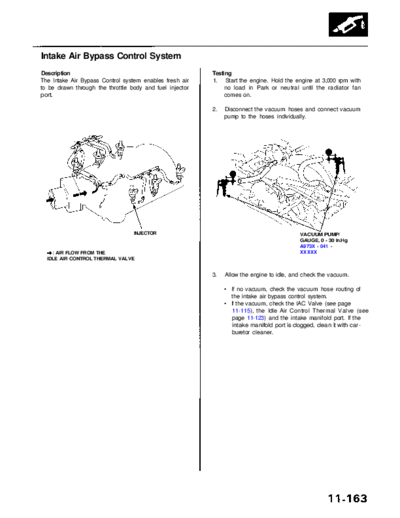

Image preview - the first page of the document
>> Download RL9604S11163A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Intake Air Bypass Control System
Description Testing
The Intake Air Bypass Control system enables fresh air 1. Start the engine. Hold the engine at 3,000 rpm with
to be drawn through the throttle body and fuel injector no load in Park or neutral until the radiator fan
port. comes on.
2. Disconnect the vacuum hoses and connect vacuum
pump to the hoses individually.
INJECTOR VACUUM PUMP/
GAUGE, 0 - 30 In.Hg
A973X - 041 -
AIR FLOW FROM THE XXXXX
IDLE AIR CONTROL THERMAL VALVE
3. Allow the engine to idle, and check the vacuum.
