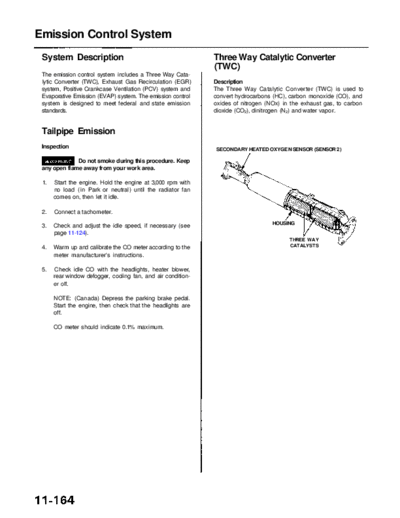

Image preview - the first page of the document
RL9604S11164A


>> Download RL9604S11164A documenatation <<

Text preview - extract from the document
              Main Menu                Table of Contents


Emission Control System
 System Description                                           Three Way Catalytic Converter
                                                              (TWC)
 The emission control system includes a Three Way Cata-
 lytic Converter (TWC), Exhaust Gas Recirculation (EGR)       Description
 system, Positive Crankcase Ventilation (PCV) system and      The Three Way Catalytic Converter (TWC) is used to
 Evaporative Emission (EVAP) system. The emission control     convert hydrocarbons (HC), carbon monoxide (CO), and
 system is designed to meet federal and state emission        oxides of nitrogen (NOx) in the exhaust gas, to carbon
 standards.                                                   dioxide (CO2), dinitrogen (N2) and water vapor.


 Tailpipe Emission
 Inspection                                                    SECONDARY HEATED OXYGEN SENSOR (SENSOR 2)

              Do not smoke during this procedure. Keep
 any open flame away from your work area.

 1.   Start the engine. Hold the engine at 3,000 rpm with
      no load (in Park or neutral) until the radiator fan
      comes on, then let it idle.

 2.   Connect a tachometer.
                                                                                   HOUSING
 3.   Check and adjust the idle speed, if necessary (see
      page 11-124).
                                                                                         THREE WAY
 4.   Warm up and calibrate the CO meter according to the                                CATALYSTS

      meter manufacturer's instructions.

 5.   Check idle CO with the headlights, heater blower,
      rear window defogger, cooling fan, and air condition-
      er off.

      NOTE: (Canada) Depress the parking brake pedal.
      Start the engine, then check that the headlights are
      off.

      CO meter should indicate 0.1% maximum.
