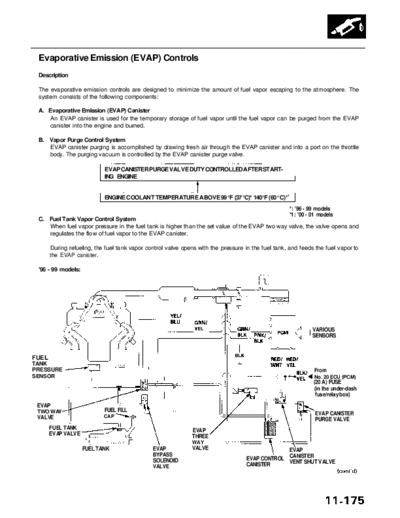

Image preview - the first page of the document
RL9604S11175A


>> Download RL9604S11175A documenatation <<

Text preview - extract from the document
                Main Menu                 Table of Contents




 Evaporative Emission (EVAP) Controls
 Description

 The evaporative emission controls are designed to minimize the amount of fuel vapor escaping to the atmosphere. The
 system consists of the following components:

 A. Evaporative Emission (EVAP) Canister
    An EVAP canister is used for the temporary storage of fuel vapor until the fuel vapor can be purged from the EVAP
    canister into the engine and burned.

 B. Vapor Purge Control System
    EVAP canister purging is accomplished by drawing fresh air through the EVAP canister and into a port on the throttle
    body. The purging vacuum is controlled by the EVAP canister purge valve.

                            EVAP CANISTER PURGE VALVE DUTY CONTROLLED AFTER START-
                            ING ENGINE


                            ENGINE COOLANT TEMPERATURE ABOVE 99
