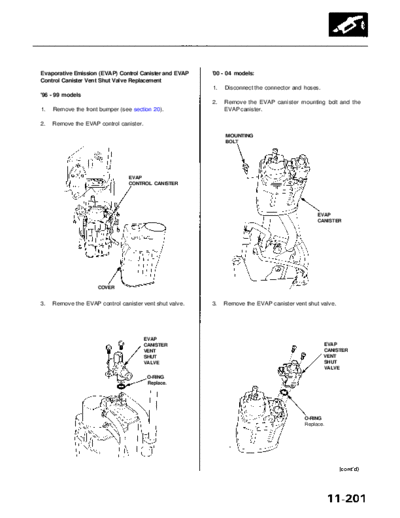

             Main Menu               Table of Contents




Evaporative Emission (EVAP) Control Canister and EVAP    '00 - 04 models:
Control Canister Vent Shut Valve Replacement
                                                         1.   Disconnect the connector and hoses.
'96 - 99 models
                                                         2.   Remove the EVAP canister mounting bolt and the
1.   Remove the front bumper (see section 20).                EVAP canister.

2.   Remove the EVAP control canister.

                                                              MOUNTING
                                                              BOLT




                                 EVAP
                                 CONTROL CANISTER




                                                                                                EVAP
                                                                                                CANISTER




                     COVER


3.   Remove the EVAP control canister vent shut valve.   3.   Remove the EVAP canister vent shut valve.




                                         EVAP
                                         CANISTER                                                   EVAP
                                         VENT                                                       CANISTER
                                         SHUT                                                       VENT
                                         VALVE                                                      SHUT
                                                                                                    VALVE
                                          O-RING
                                          Replace.




                                                                                           O-RING
                                                                                           Replace.
