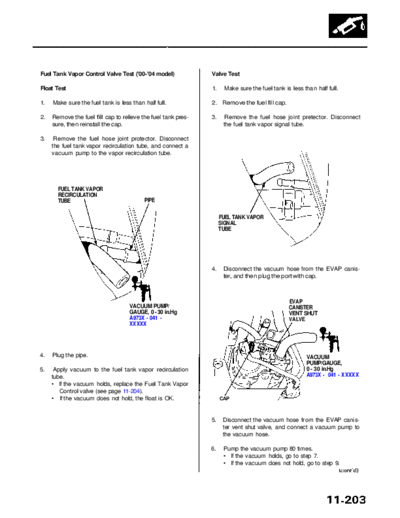

Image preview - the first page of the document
RL9604S11203A


>> Download RL9604S11203A documenatation <<

Text preview - extract from the document
              Main Menu                  Table of Contents




Fuel Tank Vapor Control Valve Test ('00-'04 model)             Valve Test

Float Test                                                     1.    Make sure the fuel tank is less than half full.

1.   Make sure the fuel tank is less than half full.           2. Remove the fuel fill cap.

2.   Remove the fuel fill cap to relieve the fuel tank pres-   3.    Remove the fuel hose joint pretector. Disconnect
     sure, then reinstall the cap.                                   the fuel tank vapor signal tube.

3.    Remove the fuel hose joint protector. Disconnect
     the fuel tank vapor recirculation tube, and connect a
     vacuum pump to the vapor recirculation tube.




       FUEL TANK VAPOR
       RECIRCULATION
       TUBE                                PIPE

                                                                    FUEL TANK VAPOR
                                                                    SIGNAL
                                                                    TUBE




                                                               4.    Disconnect the vacuum hose from the EVAP canis-
                                                                     ter, and then plug the port with cap.



                                                                                               EVAP
                                    VACUUM PUMP/                                               CANISTER
                                    GAUGE, 0 - 30 in.Hg                                        VENT SHUT
                                    A973X - 041 -                                              VALVE
                                    XXXXX




4.   Plug the pipe.                                                                                   VACUUM
                                                                                                      PUMP/GAUGE,
5.    Apply vacuum to the fuel tank vapor recirculation                                               0 - 30 in.Hg
     tube.                                                                                            A973X - 041 - XXXXX
