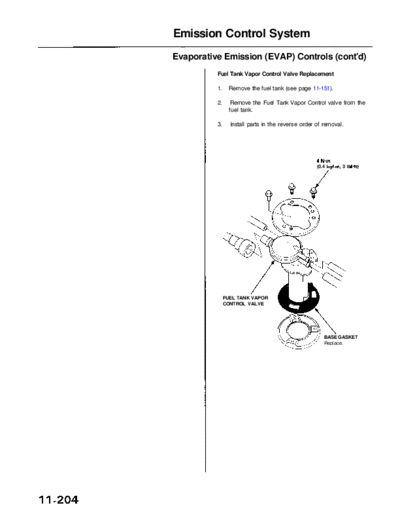

Image preview - the first page of the document



>> Download RL9604S11204A documenatation <<

Text preview - extract from the document

Main Menu   Table of Contents

                         Emission Control System
                        Evaporative Emission (EVAP) Controls (cont'd)
                                  Fuel Tank Vapor Control Valve Replacement

                                  1.    Remove the fuel tank (see page 11-151).

                                  2.      Remove the Fuel Tank Vapor Control valve from the
                                         fuel tank.

                                  3.     Install parts in the reverse order of removal.




                                                                            4N-m
                                                                            (0.4 kgf-m, 3 Ibf-ft)




                                       FUEL TANK VAPOR
                                       CONTROL VALVE




                                                                               BASE GASKET
                                                                               Replace.
