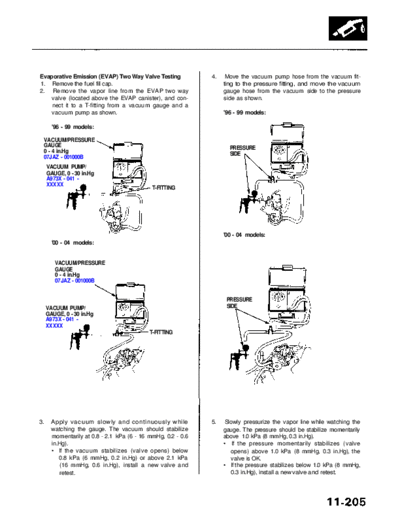

                Main Menu               Table of Contents




Evaporative Emission (EVAP) Two Way Valve Testing             4.    Move the vacuum pump hose from the vacuum fit-
1. Remove the fuel fill cap.                                       ting to the pressure fitting, and move the vacuum
2. Remove the vapor line from the EVAP two way                     gauge hose from the vacuum side to the pressure
    valve (located above the EVAP canister), and con-              side as shown.
    nect it to a T-fitting from a vacuum gauge and a
    vacuum pump as shown.                                          '96 - 99 models:

       '96 - 99 models:

 VACUUM/PRESSURE
 GAUGE                                                               PRESSURE
 0 - 4 in.Hg                                                         SIDE
 07JAZ - 001000B
     VACUUM PUMP/
     GAUGE, 0 - 30 in.Hg
     A973X - 041 -
     XXXXX
                                             T-FITTING




                                                                   '00 - 04 models:
       '00 - 04 models:


        VACUUM/PRESSURE
        GAUGE
        0 - 4 in.Hg
        07JAZ - 001000B


                                                                    PRESSURE
     VACUUM PUMP/                                                   SIDE
     GAUGE, 0 - 30 in.Hg
     A973X - 041 -
     XXXXX
                                            T-FITTING




3.     Apply vacuum slowly and continuously while             5.    Slowly pressurize the vapor line while watching the
       watching the gauge. The vacuum should stabilize             gauge. The pressure should be stabilize momentarily
       momentarily at 0.8 - 2.1 kPa (6 - 16 mmHg, 0.2 - 0.6        above 1.0 kPa (8 mmHg, 0.3 in.Hg).
       in.Hg).
