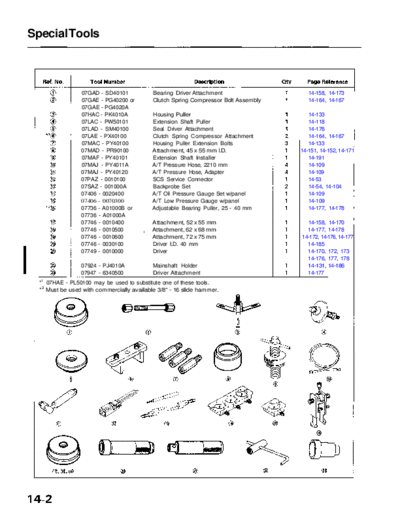

Image preview - the first page of the document
RL9604S14002A


>> Download RL9604S14002A documenatation <<

Text preview - extract from the document
               Main Menu                Table of Contents


Special Tools



                 07GAD - SD40101             Bearing Driver Attachment                   14-158, 14-173
                 07GAE - PG40200 or          Clutch Spring Compressor Bolt Assembly      14-164, 14-167
                 07GAE - PG4020A
                 07HAC - PK4010A            Housing Puller                               14-133
                 07LAC - PW50101            Extension Shaft Puller                       14-118
                 07LAD - SM40100            Seal Driver Attachment                       14-176
                 07LAE - PX40100            Clutch Spring Compressor Attachment          14-164, 14-167
                 07MAC - PY40100            Housing Puller Extension Bolts               14-133
                 07MAD - PR90100            Attachment, 45 x 55 mm I.D.               14-151, 14-152, 14-171
                 07MAF - PY40101            Extension Shaft Installer                    14-191
                 07MAJ - PY4011A            A/T Pressure Hose, 2210 mm                   14-109
                 07MAJ - PY40120            A/T Pressure Hose, Adapter                   14-109
                 07PAZ - 0010100            SCS Service Connector                        14-53
                 07SAZ - 001000A            Backprobe Set                                14-54, 14-104
                 07406 - 0020400            A/T Oil Pressure Gauge Set w/panel           14-109
                 07406 - 0070300            A/T Low Pressure Gauge w/panel               14-109
                 07736 - A01000B or         Adjustable Bearing Puller, 25 - 40 mm        14-177, 14-178
                 07736 - A01000A
                 07746 - 0010400            Attachment, 52 x 55 mm                      14-158, 14-170
                 07746 - 0010500            Attachment, 62 x 68 mm                      14-177, 14-178
                 07746 - 0010600            Attachment, 72 x 75 mm                    14-172, 14-176, 14-177
                 07746 - 0030100            Driver I.D. 40 mm                           14-185
                 07749 - 0010000            Driver                                      14-170, 172, 173
                                                                                        14-176, 177, 178
                 07924 - PJ4010A             Mainshaft Holder                           14-131, 14-186
                 07947 - 6340500             Driver Attachment                          14-177
  *1 07HAE - PL50100 may be used to substitute one of these tools.
  * 2 Must be used with commercially available 3/8" - 16 slide hammer.
