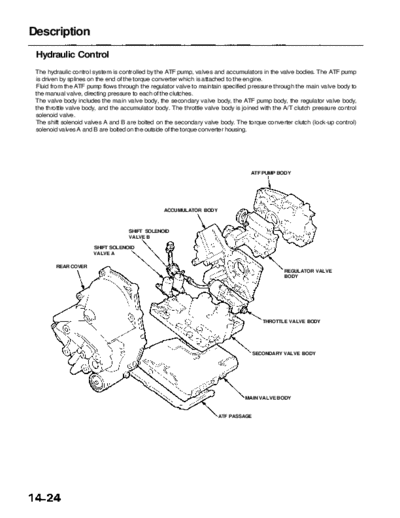

Image preview - the first page of the document
>> Download RL9604S14024A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Description
Hydraulic Control
The hydraulic control system is controlled by the ATF pump, valves and accumulators in the valve bodies. The ATF pump
is driven by splines on the end of the torque converter which is attached to the engine.
Fluid from the ATF pump flows through the regulator valve to maintain specified pressure through the main valve body to
the manual valve, directing pressure to each of the clutches.
The valve body includes the main valve body, the secondary valve body, the ATF pump body, the regulator valve body,
the throttle valve body, and the accumulator body. The throttle valve body is joined with the A/T clutch pressure control
solenoid valve.
The shift solenoid valves A and B are bolted on the secondary valve body. The torque converter clutch (lock-up control)
solenoid valves A and B are bolted on the outside of the torque converter housing.
ATF PUMP BODY
ACCUMULATOR BODY
SHIFT SOLENOID
VALVE B
SHIFT SOLENOID
VALVE A
REAR COVER
REGULATOR VALVE
BODY
THROTTLE VALVE BODY
SECONDARY VALVE BODY
MAIN VALVE BODY
ATF PASSAGE
Main Menu Table of Contents
Lower Valve Body Assembly
The lower valve body assembly is located on the bottom of the transmission housing. The lower valve body assembly
consists of the main valve body, the secondary valve body and the ATF passage.
Main Valve Body
The main valve body houses the manual valve, the 1-2 shift valve, the 2-3 shift valve, the 3-4 shift valve, the 4-3 kick-down
valve and the main orifice control valve. The primary functions of the main valve body are to switch fluid pressure on and
off and to control the hydraulic pressure going to the hydraulic control system.
Secondary Valve Body
The secondary valve body is located on the main valve body. The secondary valve body houses the line pressure control
valve, the modulator valve, the 3-4 orifice control valve, the 4-3 shift timing valve, the 1st accumulator piston and the 2nd
accumulator piston. The shift solenoid valves A and B are assembled on the secondary valve body.
Throttle Valve Body/A/T Clutch Pressure Control Solenoid Valve
The throttle valve body is joined with the A/T clutch pressure control solenoid valve which is controlled by the PCM. The
throttle valve body/A/T clutch pressure control solenoid valve is located on the secondary valve body. The throttle valve
body houses the throttle valve.
LINE PRESSURE
CONTROL VALVE A/T CLUTCH PRESSURE CONTROL
SOLENOID VALVE
THROTTLE VALVE BODY
SHIFT SOLENOID
VALVE B THROTTLE VALVE
SHIFT SOLENOID
VALVE A 2ND ACCUMULATOR
PISTON
MODULATOR VALVE
1ST ACCUMULATOR 3-4 ORIFICE CONTROL
PISTON VALVE
SECONDARY VALVE
4-3
BODY
SHIFT TIMING VALVE
MAIN VALVE BODY
4-3 KICK-DOWN
VALVE
3-4 SHIFT VALVE
MANUAL VALVE
2-3 SHIFT VALVE
MAIN ORIFICE CONTROL VALVE
1-2 SHIFT VALVE
Main Menu Table of Contents
Description
Hydraulic Control (cont'd)
ATF Pump Body
The ATF pump body is located on the torque converter housing. The ATF pump body consists of the ATF pump gears, the
relief valve, the lock-up control valve, the lock-up timing valve and the torque converter check valve. The torque converter
check valve is located between the ATF pump body and the torque converter housing.
Accumulator Body
The accumulator body is located on the torque converter housing next to the ATF pump body. The accumulator body
houses the 3rd accumulator piston and the 4th accumulator piston.
Regulator Valve Body
The regulator valve body is located on the ATF pump body. The regulator valve body consists of the regulator valve, the
cooler relief valve and the lock-up shift valve.
REGULATOR VALVE
BODY
REGULATOR VALVE
4TH ACCUMULATOR
ATF PUMP BODY
3RD ACCUMULATOR
RELIEF VALVE
LOCK-UP CONTROL
VALVE
LOCK-UP TIMING
VALVE
TORQUE CONVERTER
LOCK-UP SHIFT CHECK VALVE
VALVE
COOLER RELIEF
VALVE
ACCUMULATOR BODY
Main Menu Table of Contents
Regulator Valve
The regulator valve regulates the line pressure, and also supplies the fluid to the lubricating system and torque converter.
To regulate the line pressure, the regulator valve passes the fluid from the ATF pump through the lubricating system and
the torque converter, and the regulator valve receives line pressure control pressure.
The fluid from the ATF pump flows through B and B'. The fluid entering from B flows through the regulator valve orifice to
the A cavity. This pressure of the A cavity pushes the regulator valve to the right side. The line pressure control pressure
flows to the right side of the regulator valve, and pushes the regulator valve to the left side. As a result, the regulator valve
stays at a certain position, and maintains it to regulate line pressure. The line pressure control pressure increases accord-
ing to the throttle opening (throttle B pressure), while the line pressure increases according to the line pressure control
pressure. The line pressure can be regulated a wide range by the line pressure control pressure.
NOTE: When used, "left" or "right" indicates direction on the illustration below.
ENGINE NOT RUNNING ENGINE RUNNING
To Torque Converter LINE PRESSURE CONTROL PRESSURE
REGULATOR VALVE ORIFICE
A CAVITY
REGULATOR VALVE To Lubricating System LINE PRESSURE from ATF PUMP
Stator Reaction Hydraulic Pressure Control
Hydraulic pressure increases according to the torque is performed by the regulator valve using the stator torque reaction.
The stator shaft is splined with the stator in the torque converter, and its arm end contacts the regulator spring cap. When
the vehicle is accelerating or climbing (Torque Converter Range), the stator torque reaction acts on the stator shaft, and
the stator arm pushes the regulator spring cap in the direction of the arrow in proportion to the reaction. The stator reac-
tion spring compresses, and the regulator valve moves to increase the line pressure which is regulated by the regulator
valve. The line pressure reaches its maximum when the stator torque reaction reaches its maximum.
TORQUE CONVERTER
REGULATOR VALVE
REGULATOR VALVE
BODY
STATOR
(Inside torque converter)
REGULATOR STATOR SHAFT ARM
SPRING CAP
