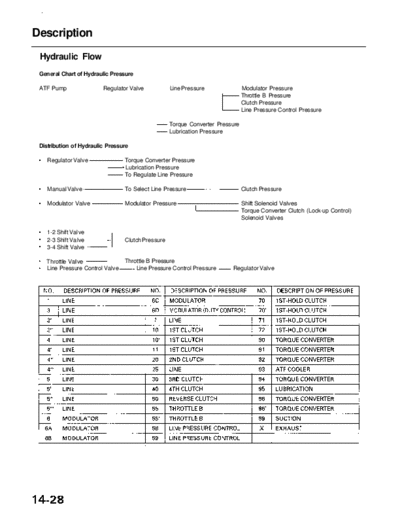

              Main Menu                Table of Contents

Description
 Hydraulic Flow
 General Chart of Hydraulic Pressure

 ATF Pump                 Regulator Valve           Line Pressure               Modulator Pressure
                                                                                Throttle B Pressure
                                                                                Clutch Pressure
                                                                                Line Pressure Control Pressure

                                                    Torque Converter Pressure
                                                    Lubrication Pressure

 Distribution of Hydraulic Pressure

    Regulator Valve               Torque Converter Pressure
