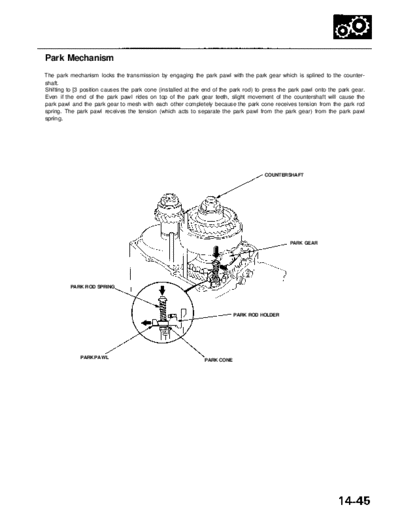

Image preview - the first page of the document
RL9604S14045A


>> Download RL9604S14045A documenatation <<

Text preview - extract from the document
           Main Menu                 Table of Contents




Park Mechanism
The park mechanism locks the transmission by engaging the park pawl with the park gear which is splined to the counter-
shaft.
Shifting to [3 position causes the park cone (installed at the end of the park rod) to press the park pawl onto the park gear.
Even if the end of the park pawl rides on top of the park gear teeth, slight movement of the countershaft will cause the
park pawl and the park gear to mesh with each other completely because the park cone receives tension from the park rod
spring. The park pawl receives the tension (which acts to separate the park pawl from the park gear) from the park pawl
spring.




                                                                                      COUNTERSHAFT




                                                                                                PARK GEAR




          PARK ROD SPRING




                                                                          PARK ROD HOLDER




              PARK PAWL
                                                              PARK CONE
