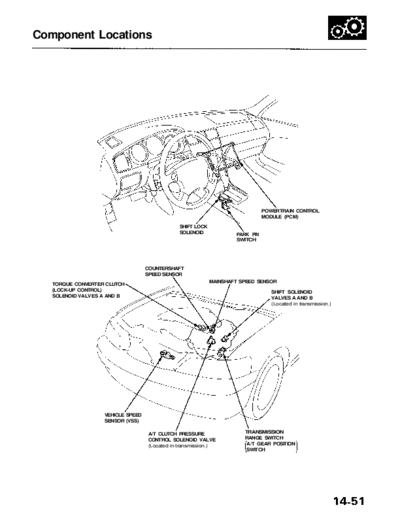

RL9604S14051A


>> Download RL9604S14051A documenatation <<

Text preview - extract from the document
          Main Menu               Table of Contents


Component Locations




                                                                                  POWERTRAIN CONTROL
                                                                                  MODULE (PCM)

                                                  SHIFT LOCK
                                                  SOLENOID             PARK PIN
                                                                       SWITCH




                                      COUNTERSHAFT
                                      SPEED SENSOR

   TORQUE CONVERTER CLUTCH                                     MAINSHAFT SPEED SENSOR
   (LOCK-UP CONTROL)                                                                 SHIFT SOLENOID
   SOLENOID VALVES A AND B                                                           VALVES A AND B
                                                                                     (Located in transmission.)




                      VEHICLE SPEED
                      SENSOR (VSS)

                                      A/T CLUTCH PRESSURE                 TRANSMISSION
                                      CONTROL SOLENOID VALVE              RANGE SWITCH
                                      (Located in transmission.)          A/T GEAR POSITION
                                                                          SWITCH
