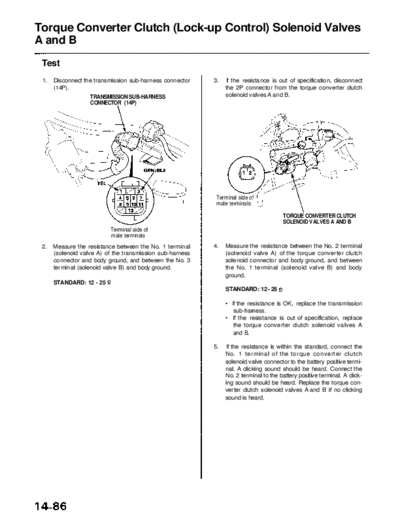

Image preview - the first page of the document



>> Download RL9604S14086A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents

Torque Converter Clutch (Lock-up Control) Solenoid Valves
A and B
 Test
 1.   Disconnect the transmission sub-harness connector     3.   If the resistance is out of specification, disconnect
      (14P).                                                     the 2P connector from the torque converter clutch
                   TRANSMISSION SUB-HARNESS                      solenoid valves A and B.
                   CONNECTOR (14P)




                                                             Terminal side of
                                                             male terminals

                                                                                         TORQUE CONVERTER CLUTCH
                                                                                         SOLENOID VALVES A AND B
                           Terminal side of
                           male terminals
 2.   Measure the resistance between the No. 1 terminal     4.   Measure the resistance between the No. 2 terminal
      (solenoid valve A) of the transmission sub-harness         (solenoid valve A) of the torque converter clutch
      connector and body ground, and between the No. 3           solenoid connector and body ground, and between
      terminal (solenoid valve B) and body ground.               the No. 1 terminal (solenoid valve B) and body
                                                                 ground.
      STANDARD: 12 - 25
                                                                 STANDARD: 12 - 25
